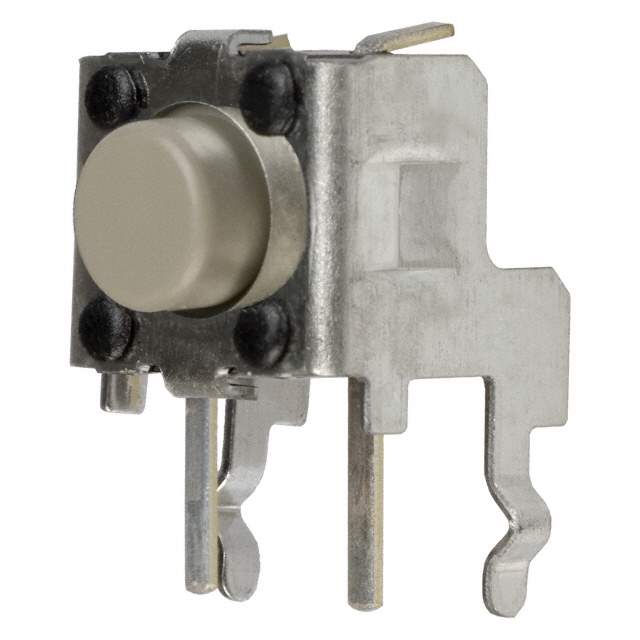

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Bulk
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Through Hole, Right Angle
Actuator Length, Right Angle 3.85mm
Actuator Orientation Side Actuated
Termination Style PC Pin
Outline 7.40mm x 7.30mm
Illumination Non-Illuminated
Operating Force 150gf
Features Grounding Pin
Switch Travel 0.25mm
Mechanical Life 300,000 Cycles
Temperature Range - Operating -25°C to 70°C
Win Source Part Number 1104160-B3F-3122
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian B3F-3122 CAD Model

Description

The B3F-3122 switch is a single-pole, single-throw (SPST-NO) circuit switch that is designed to be mounted through a hole at a right angle from Omron Electronics Inc-EMC Div.

  • Illumination Type: Non-illuminated
  • Actuator Type: Standard
  • Mechanical Life: 300,000 cycles
  • Actuator Travel: 0.25mm
  • Popularity: Medium
  • Supply and Demand Status: Balanced
