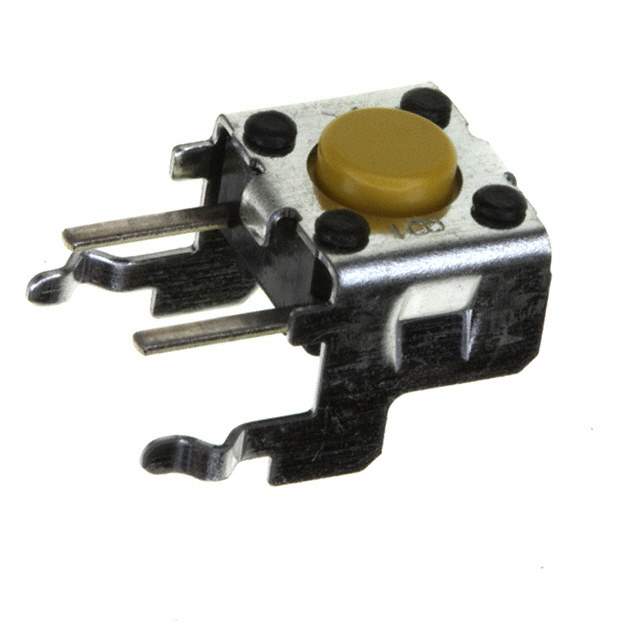

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Bulk
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Through Hole, Right Angle
Actuator Length, Right Angle 3.15mm
Actuator Orientation Side Actuated
Termination Style PC Pin
Outline 7.40mm x 7.30mm
Illumination Non-Illuminated
Operating Force 150gf
Features Grounding Pin
Switch Travel 0.25mm
Mechanical Life 300,000 Cycles
Temperature Range - Operating -25°C to 70°C
Win Source Part Number 1021571-B3F-3102
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian B3F-3102 CAD Model

Description

The Omron B3F-3102 is a through-hole, right-angle switch with a standard actuator type and a grounding pin.

  • Mounting Type: Through-Hole
  • Orientation: Right-Angle
  • Actuator Type: Standard
  • Features: Grounding Pin
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
  • Applications: Industrial, Test and Measurement, Communications and Networking
  • Mechanical Life: 300,000 Cycles
  • Operating Force: 150gf
  • Outline: 7.40mm x 7.30mm
  • Operating Temperature: -25°C to 70°C
