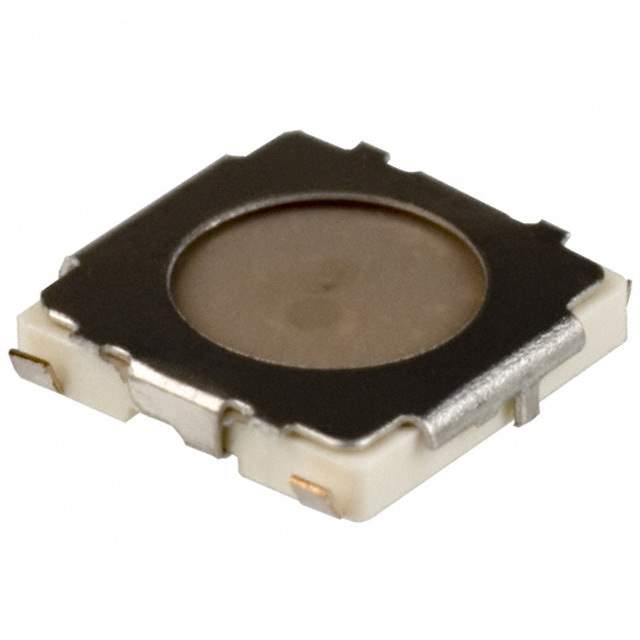

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 0.80mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 4.90mm x 4.90mm
Illumination Non-Illuminated
Operating Force 160gf
Switch Travel 0.25mm
Mechanical Life 500,000 Cycles
Temperature Range - Operating -20°C to 70°C
Win Source Part Number 1037275-EVQ-PLFA08
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian EVQ-PLFA08 CAD Model

Description

The EVQ-PLFA08 is a SPST-NO circuit switch manufactured by Panasonic Electronic Components.

  • Mounting: surface mount device
  • Actuator Type: standard
  • Switch Function: off-mom
  • Switch Travel: 0.25mm
  • Actuator Orientation: top actuated
  • Outline: 4.90mm x 4.90mm
  • Operating Force: 160gf
  • Mechanical Life: 500,000 cycles
  • Commonly Used: in electronic devices that require a low power supply and can be used in a variety of applications, such as in home appliances, medical devices, and industrial machinery.
