Same model may have multiple batches, images only for reference.

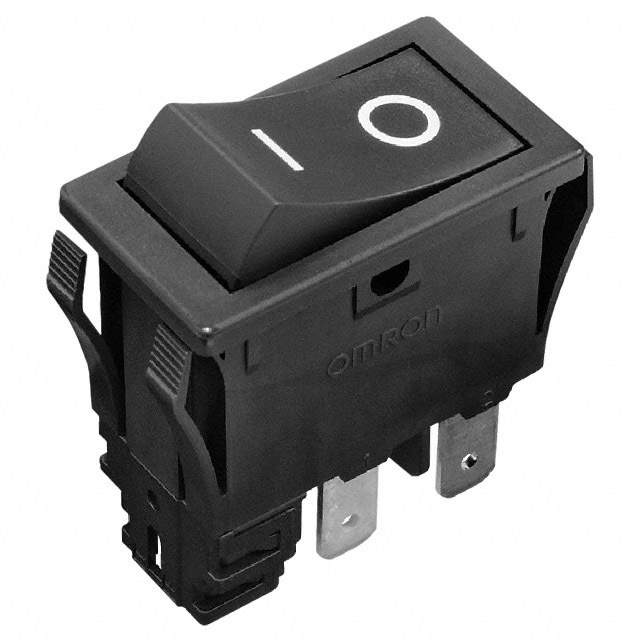

A8GS-D1315 Real Image
Same model may have multiple batches, images only for reference.

A8GS-D1315

Part No A8GS-D1315
Manufacturer Omron
Catalog Rocker Switches
Description SWITCH ROCKER DPST 16A 125V / Rocker Switch DPST 16A (AC) 125 V Panel Mount, Snap-In
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr Omron Electronics Inc-EMC Div
Series A8GS
Package Bulk
Mounting Type Panel Mount, Snap-In
Circuit DPST
Switch Function On-Off
Current Rating (Amps) 16A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking O I
Termination Style Solder Lug
Features Remote Reset Function
Panel Cutout Dimensions Rectangular - 27.70mm x 15.20mm
Temperature Range - Operating -10°C ~ 55°C
Mechanical Life 30,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number A8GS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names A8GSD1315,2266-A8GS-D1315,SW1527
Standard Package 50
Win Source Part Number 987887-A8GS-D1315
Ultra Librarian 3D Model Ultra Librarian A8GS-D1315 CAD Model

Description

The Omron Electronics Inc-EMC Div A8GS-D1315 is a DPST rocker switch with a remote reset function.

  • Circuit: DPST
  • Function: rocker switch with a remote reset function
  • Voltage Rating: 125V AC
  • Current Rating: 16A
  • Actuator Type: concave (curved)
  • Actuator/Cap Color: black
  • Mounting Type: panel mount and snap-in
  • Panel Cutout Dimension: rectangular 27.70mm x 15.20mm
  • Mechanical Life: 30,000 cycles
  • Electrical Life: 10,000 cycles
  • Temperature Range: -10°C to 55°C
  • ECCN: EAR99
