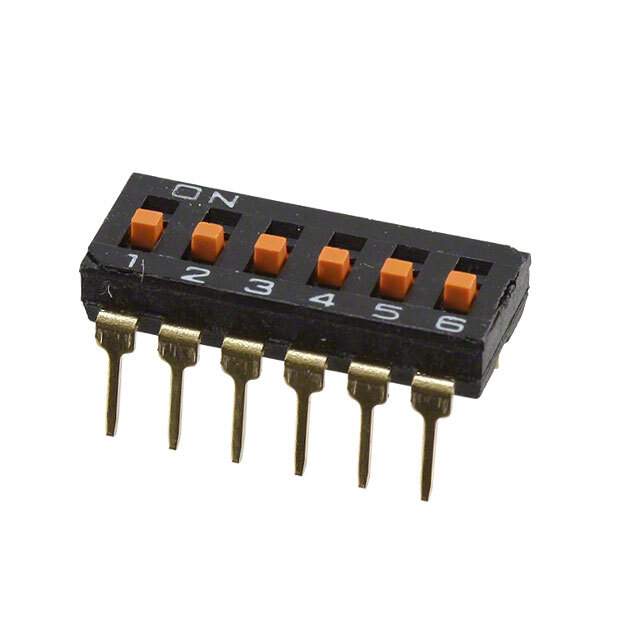

A6T-6104 Real Image
Same model may have multiple batches, images only for reference.

A6T-6104

Part No A6T-6104
Manufacturer Omron
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 6 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Tray
Circuit SPST
Number of Positions 6
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Height Above Board 0.165" (4.20mm)
Mounting Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -20°C ~ 70°C
Length 0.637" (16.18mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number A6T
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number A6T-6104-ND,SW1233,A6T6104
Standard Package 28
Win Source Part Number 1323831-A6T-6104
Ultra Librarian 3D Model Ultra Librarian A6T-6104 CAD Model

Description

The Omron Electronics Inc-EMC Div A6T-6104 is a 6-position DIP switch with a pitch of 0.100" (2.54mm), full.

  • Termination Style: PC Pin
  • Voltage Rating: 24VDC
  • Circuit Type: SPST
  • Actuator Type: Raised Actuator Type Slide (Standard)
  • Electrical and Mechanical Life: 1,000 cycles
  • Height Above Board: 0.165" (4.20mm)
  • Length: 0.637" (16.18mm)
  • Temperature Range: -20°C to 70°C
  • MSL Level: 1 (unlimited)
  • ROHS: Compliant
