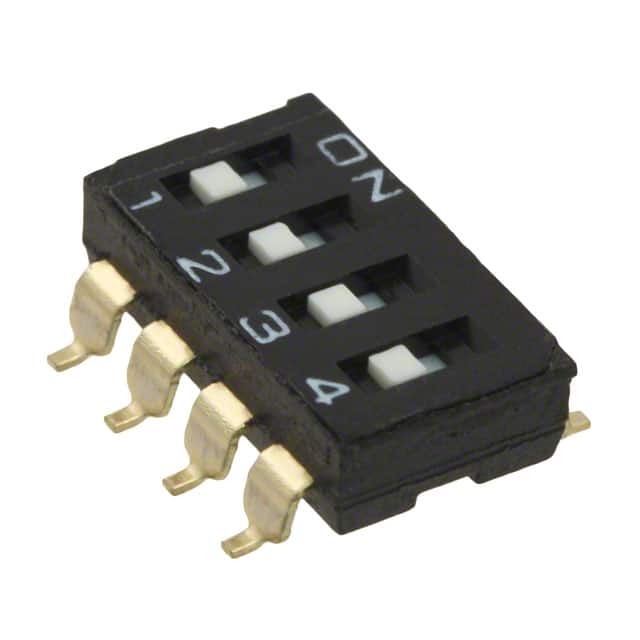

A6S-4102
Same model may have multiple batches, images only for reference.

A6S-4102

Part No A6S-4102
Manufacturer Omron
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Omron
Series A6S
Package Tube
Product Status Obsolete
Circuit SPST
Number of Positions 4
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Height Above Board 0.146" (3.70mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -20°C ~ 70°C
Length 0.437" (11.10mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Standard Package 42 pcs
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 909068-A6S-4102
Ultra Librarian 3D Model Ultra Librarian A6S-4102 CAD Model

Description

The Omron 909068-A6S-4102 is a DIP switch used for various applications manufactured by Omron.

  • Series: A6S
  • Positions: 4
  • Pitch: 0.100" (2.54mm)
  • Termination Style: Gull wing
  • Seal: Tape seal
  • Voltage Rating: 24VDC
  • Height: 0.146" (3.70mm)
  • Length: 0.437" (11.10mm)
  • Standard Package: 42 pieces
  • Circuit Configuration: SPST
  • Actuator Type: Slide (standard)
  • Electrical and Mechanical Life: 1,000 cycles
  • Washable: Yes
  • Mounting Type: Surface mount
  • Temperature Range: -20°C to 70°C
  • Current Rating: 25mA
  • Status: Obsolete
  • REACH Status: Unaffected
  • HTSUS Code: 8536.50.9065
