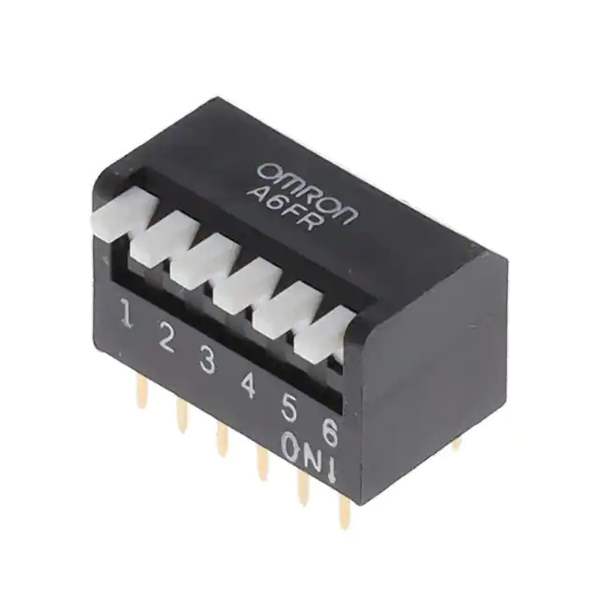

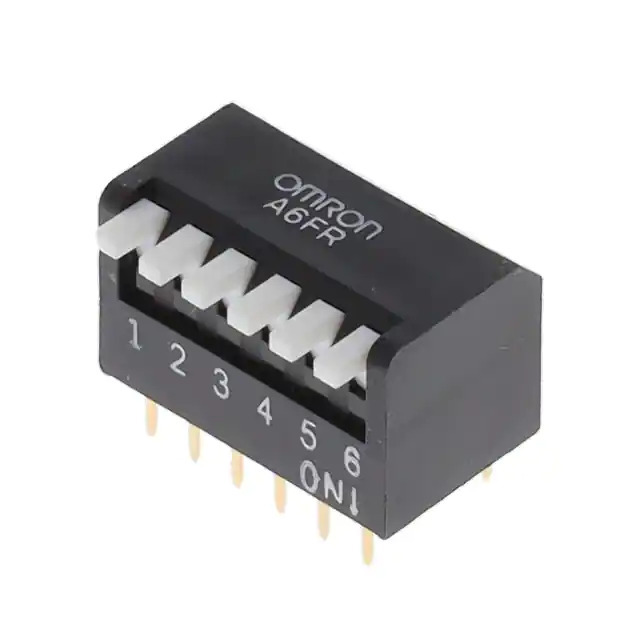

A6FR-6104 Omron
Same model may have multiple batches, images only for reference.

A6FR-6104

Part No A6FR-6104
Manufacturer Omron
Catalog DIP Switches
Description SWITCH 6POS PIANO LONG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Omron Electronics Inc-EMC Div
Series A6FR
Package Tube
Product Status Active
Circuit SPST
Number of Positions 6
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Piano
Actuator Level Raised
Contact Material -
Contact Finish -
Height Above Board 0.402" (10.20mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Features -
Temperature Range - Operating -20°C ~ 70°C
Body Material -
Length 0.661" (16.80mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number A6FR
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376398-A6FR-6104
Ultra Librarian 3D Model Ultra Librarian A6FR-6104 CAD Model

Description

The A6FR-6104 is a DIP switch manufactured by Omron Electronics Inc-EMC Div.

  • Series: A6FR
  • Circuit Configuration: SPST (Single Pole Single Throw)
  • Positions: 6
  • Current Rating: 25mA
  • Voltage Rating: 24VDC
  • Pitch: 0.100" (2.54mm)
  • Actuator Level: Raised
  • Mounting Type: Through-Hole, Right-Angle
  • Mechanical Life: 1,000 cycles
  • Electrical Life: 1,000 cycles
