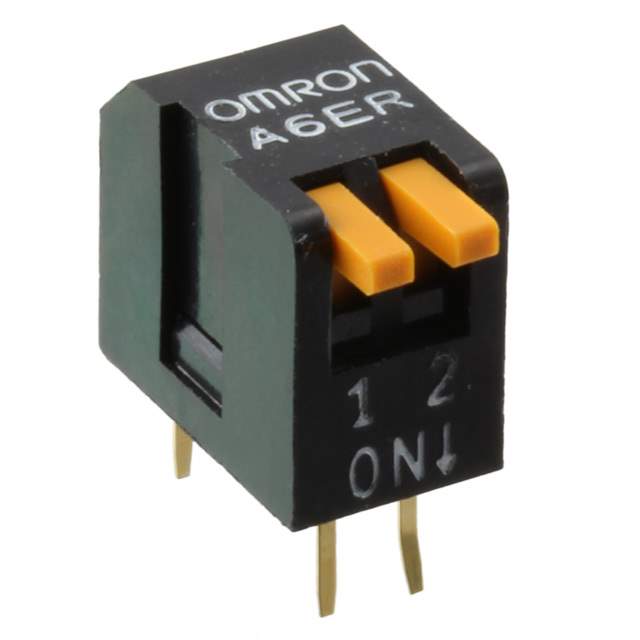

A6ER-2104 Real Image
Same model may have multiple batches, images only for reference.

A6ER-2104

Part No A6ER-2104
Manufacturer Omron
Catalog DIP Switches
Description SWITCH PIANO DIP SPST 25MA 24V / Dip Switch SPST 2 Position Through Hole, Right Angle Piano Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Omron Electronics Inc-EMC Div
Series A6ER
Package Tray
Product Status Obsolete
Circuit SPST
Number of Positions 2
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Piano
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.402" (10.20mm)
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Features Sealed - Flux Protection
Temperature Range - Operating -20°C ~ 70°C
Length 0.261" (6.63mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names A6ER-2104-ND,A6ER2104,-A6ER,SW1986
Standard Package 70
Win Source Part Number 1177821-A6ER-2104
Ultra Librarian 3D Model Ultra Librarian A6ER-2104 CAD Model

Description

The Omron A6ER2104 DIP switch is a two-position switch with a 0.100-inch pitch and full termination style. Omron manufactured it.

  • Pitch: 0.100-inch
  • Termination Style: Full
  • Sealed: Yes, flux protection
  • Contact Finish: Gold
  • Circuit: SPST
  • Actuator Type: Piano
  • Electrical and Mechanical Life: 1,000 cycles
  • Mounting Type: Through Hole, Right Angle
  • Temperature Range: -20°C to 70°C
  • Current Rating: 25mA
