Same model may have multiple batches, images only for reference.

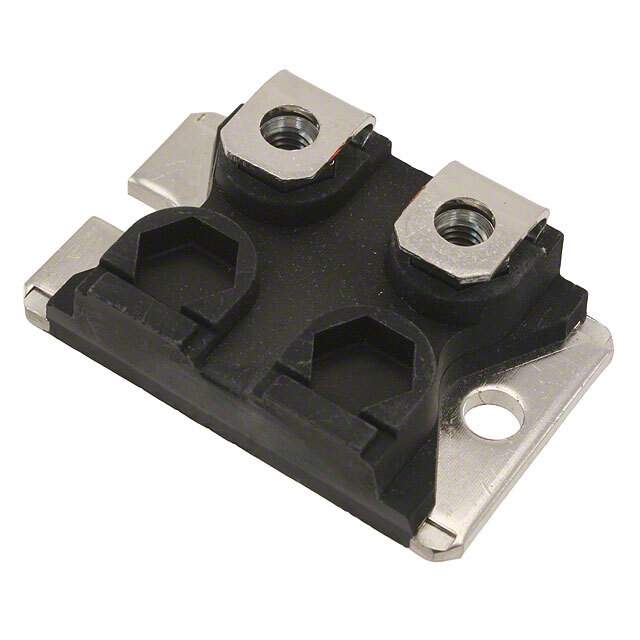

TGHLV1K00JE Real Image
Same model may have multiple batches, images only for reference.

TGHLV1K00JE

Part No TGHLV1K00JE
Manufacturer Ohmite
Catalog Chassis Mount Resistors
Description RES CHAS MNT 1K OHM 5% 200W / 1 kOhms ±5% 200W Thick Film Chassis Mount Resistor
Datasheet
TGHLV1K00JE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chassis Mount Resistors
Mfr Ohmite
Series TGH
Package Tray
Resistance 1 kOhms
Tolerance ±5%
Power (Watts) 200W
Composition Thick Film
Temperature Coefficient ±250ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Features Non-Inductive, Pulse Withstanding, RF, High Frequency
Coating, Housing Type Epoxy Coated
Mounting Feature Flanges
Size / Dimension 1.496" L x 0.980" W (38.00mm x 24.90mm)
Height - Seated (Max) 0.483" (12.26mm)
Lead Style M4 Threaded
Package / Case SOT-227-2
Standard Package 10
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Win Source Part Number 1346579-TGHLV1K00JE
Ultra Librarian 3D Model Ultra Librarian TGHLV1K00JE CAD Model

Description

The Ohmite TGH resistor is a thick film chassis mount resistor with a resistance of 1 kOhms and a power rating of 200W.

  • Resistance: 1 kOhms
  • Power Rating: 200W
  • Tolerance: ±5%
  • Temperature Coefficient: ±250ppm/°C
  • Package: Tray, Standard Package of 10
  • Dimension: 1.496" L x 0.980" W (38.00mm x 24.90mm)
  • Height (Seated): 0.483" (12.26mm)
  • Non-Inductive: Yes
  • Pulse Withstanding: Yes
  • RF: Yes
  • High Frequency: Yes
  • Lead Style: M4 Threaded
  • Mounting Feature: Flanges
  • Composition: Thick Film
  • Housing Type: Epoxy Coated
  • Application: Chassis Mount Resistors
