Same model may have multiple batches, images only for reference.

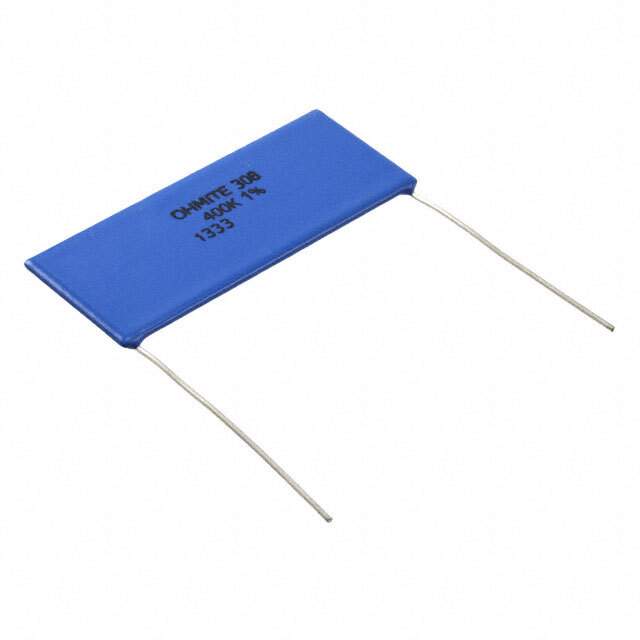

SM308034003F Real Image
Same model may have multiple batches, images only for reference.

SM308034003F

Part No SM308034003F
Manufacturer Ohmite
Catalog Through Hole Resistors
Description RES 400K OHM 4W 1% RADIAL / 400 kOhms ±1% 4W Through Hole Resistor Radial High Voltage, Non-Inductive Thick Film
Datasheet
SM308034003F Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Ohmite
Series Slim-Mox
Package Bulk
Resistance 400 kOhms
Tolerance ±1%
Power (Watts) 4W
Composition Thick Film
Features High Voltage, Non-Inductive
Temperature Coefficient 50ppm/°C
Temperature Range - Operating -55°C ~ 110°C
Package / Case Radial
Supplier Device Package Radial
Dimension 2.080" L x 0.100" W (52.83mm x 2.54mm)
Height - Seated (Max) 0.840" (21.34mm)
Number of Terminations 2
RoHS Status RoHS non-compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.21.0090
Other Names 2266-SM308034003F,Q7473189A,Q7473189,Q1531670
Standard Package 100
Win Source Part Number 1001494-SM308034003F
Ultra Librarian 3D Model Ultra Librarian SM308034003F CAD Model

Description

The SM308034003F resistor is a through-hole component that is designed for use in various applications from Ohmite.

  • Resistance: 400 kOhms
  • Power Rating: 4W
  • Tolerance: ±1%
  • Package: Radial
  • Terminations: 2
  • Temperature Range: -55°C to 110°C
  • Characteristics: High voltage and non-inductive
