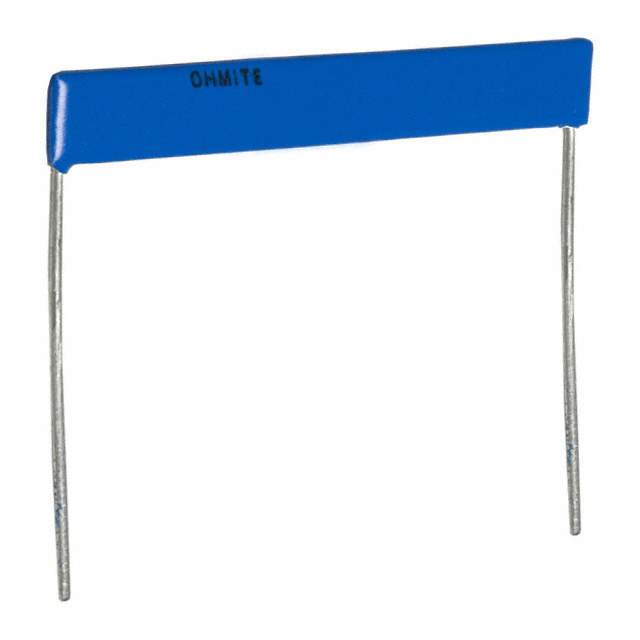

SM108032004FE Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Ohmite
Series Slim-Mox
Package Bulk
Resistance 2 MOhms
Tolerance ±1%
Power (Watts) 2.5W
Composition Thick Film
Features High Voltage, Non-Inductive
Temperature Coefficient 50ppm/°C
Temperature Range - Operating -55°C ~ 110°C
Package / Case Radial
Supplier Device Package Radial
Dimension 2.080" L x 0.100" W (52.83mm x 2.54mm)
Height - Seated (Max) 0.340" (8.64mm)
Number of Terminations 2
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.21.0090
Other Names SM108032004FE-ND,SM108FE-2M
Standard Package 50
Win Source Part Number 998786-SM108032004FE
Ultra Librarian 3D Model Ultra Librarian SM108032004FE CAD Model

Description

The Ohmite 998786-SM108032004FE is a high voltage, non-inductive thick film resistor with a resistance of 2 MOhms and a power rating of 2.5W.

  • Resistance: 2 MOhms
  • Power Rating: 2.5W
  • Tolerance: ±1%
  • Temperature Coefficient: 50ppm/°C
  • Type: Radial
  • Series: Slim-Mox
  • Packaging: Bulk
  • Standard Package: 50
  • Height: 0.340" (8.64mm)
  • Dimensions: 2.080" L x 0.100" W (52.83mm x 2.54mm)
  • Operating Temperature: -55°C to 110°C
  • Application: Through hole resistor
