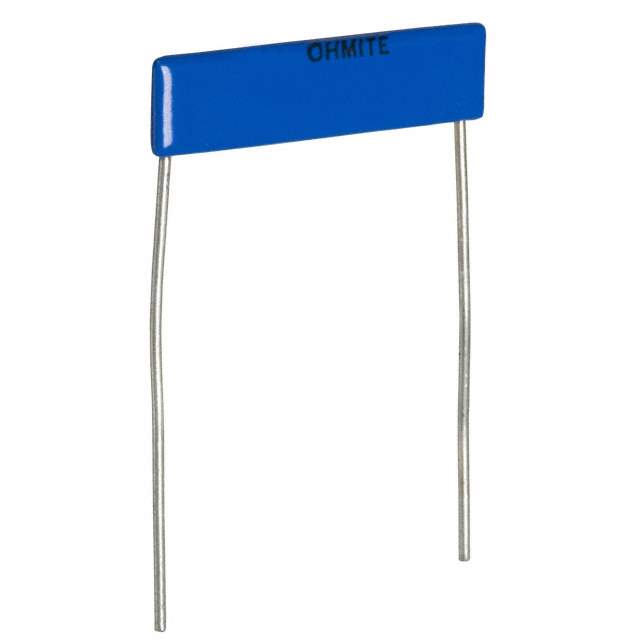

SM104031007FE Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Ohmite
Series Slim-Mox
Package Bulk
Resistance 1 GOhms
Tolerance ±1%
Power (Watts) 1.5W
Composition Thick Film
Features High Voltage, Non-Inductive
Temperature Coefficient 100ppm/°C
Temperature Range - Operating -55°C ~ 110°C
Package / Case Radial
Supplier Device Package Radial
Dimension 1.080" L x 0.100" W (27.43mm x 2.54mm)
Height - Seated (Max) 0.340" (8.64mm)
Number of Terminations 2
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.21.0090
Other Names SM104FE-1000M,SM104031007FE-ND,2266-SM104031007FE
Standard Package 100
Win Source Part Number 1008902-SM104031007FE
Ultra Librarian 3D Model Ultra Librarian SM104031007FE CAD Model

Description

The SM104031007FE is a through-hole resistor from Ohmite.

  • Manufacturer: Ohmite
  • Series: Slim-Mox
  • Resistance: 1 GOhms
  • Power Rating: 1.5W
  • Composition: Thick film
  • Package/Case: Radial
  • Tolerance: ±1%
  • Temperature Coefficient: 100ppm/°C
  • Non-Inductive: Yes
  • Height: 0.340” (8.64mm)
  • Standard Package: 100 resistors
  • Temperature Range: -55°C to 110°C
