Same model may have multiple batches, images only for reference.

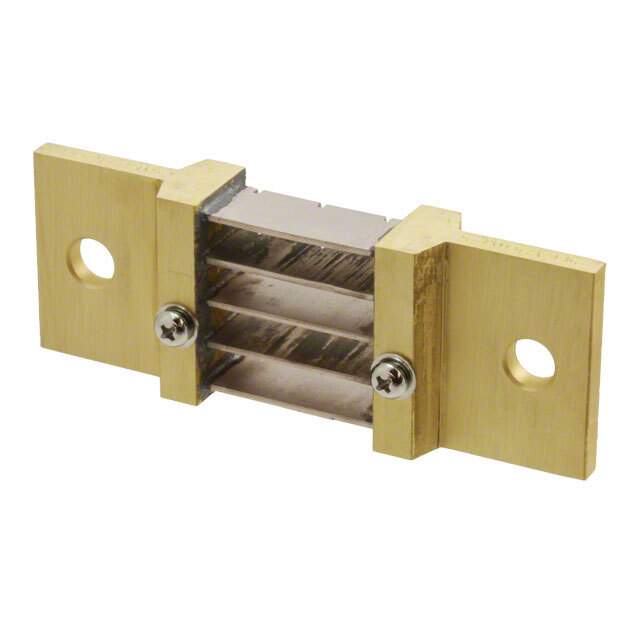

SHT1-500C075DE Real Image
Same model may have multiple batches, images only for reference.

SHT1-500C075DE

Part No SHT1-500C075DE
Manufacturer Ohmite
Catalog Chassis Mount Resistors
Description RES CHAS MNT 150 UOHM 0.5% / 150 µOhms ±0.5% 37.5W Metal Element Chassis Mount Resistor
Datasheet
SHT1-500C075DE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr Ohmite
Series S
Package Bulk
Resistance 150 µOhms
Tolerance ±0.5%
Power (Watts) 37.5W
Composition Metal Element
Temperature Range - Operating -25°C ~ 85°C
Features Current Sense
Mounting Feature Flanges
Dimension 4.961" L x 1.811" W (126.00mm x 46.00mm)
Height - Seated (Max) 0.906" (23.00mm)
Lead Style 4-Terminal
Package / Case Rectangular Case - Open
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Other Names SHT1500C075DE
Standard Package 1
Win Source Part Number 1063585-SHT1-500C075DE
Ultra Librarian 3D Model Ultra Librarian SHT1-500C075DE CAD Model

Description

The Ohmite SHT1-500C075DE resistor is a chassis mount resistor with a metal element composition.

  • Resistance: 150 μOhms
  • Power Rating: 37.5W
  • Tolerance: ±0.5%
  • Mounting: flanges for easy mounting
  • Case: rectangular case that is open
  • Operating Temperature: -25°C to 85°C
  • Dimensions: 4.961" L x 1.811" W (126.00mm x 46.00mm)
  • Series: S series
  • Application: designed for current sensing applications
