Same model may have multiple batches, images only for reference.

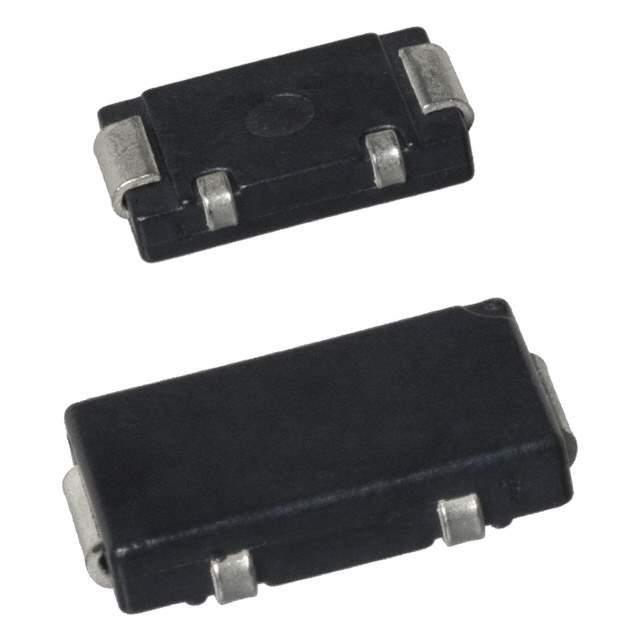

RW1S0CKR010FET Real Image
Same model may have multiple batches, images only for reference.

RW1S0CKR010FET

Part No RW1S0CKR010FET
Manufacturer Ohmite
Catalog Chip Resistor - Surface Mount
Description Surface Mount Four Terminal Current Sense
Datasheet
RW1S0CKR010FET Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Ohmite
Series RW1S0CK
Packaging Reel - TR
Resistance (Ohms) 0.01
Tolerance ±1%
Power (Watts) 1W
Composition Thick Film
Features Current Sense, Flame Proof, Moisture Resistant, Safety
Temperature Coefficient ±50ppm/°C
Operating Temperature Range -55°C ~ 125°C
Package 4324 J-Lead (4 Terminals)
Size 0.425" L x 0.244" W (10.80mm x 6.20mm)
Height - Seated (Maximum) 0.091" (2.30mm)
Number of Terminations 4
Win Source Part Number 1244774-RW1S0CKR010FET
Manufacturer Homepage www.ohmite.com
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Family Name RW
Introduction Date January 03, 2003
ECCN EAR99
Country of Origin Mexico
Halogen Free Unknown
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian RW1S0CKR010FET CAD Model

Description

The RW1S0CKR010FET is a 1W thick film resistor designed for use in 4324 J-Lead (4 Terminals) packages.

  • Power: 1W
  • Package: 4324 J-Lead (4 Terminals)
  • Resistance: 0.01 ohms
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Flame Proof: Yes
  • Moisture Resistant: Yes
  • Seated Height: 0.091" (2.30mm)
  • Package: Reel
  • Standard Package: 1,000 resistors
  • Temperature Range: -55°C to 125°C
