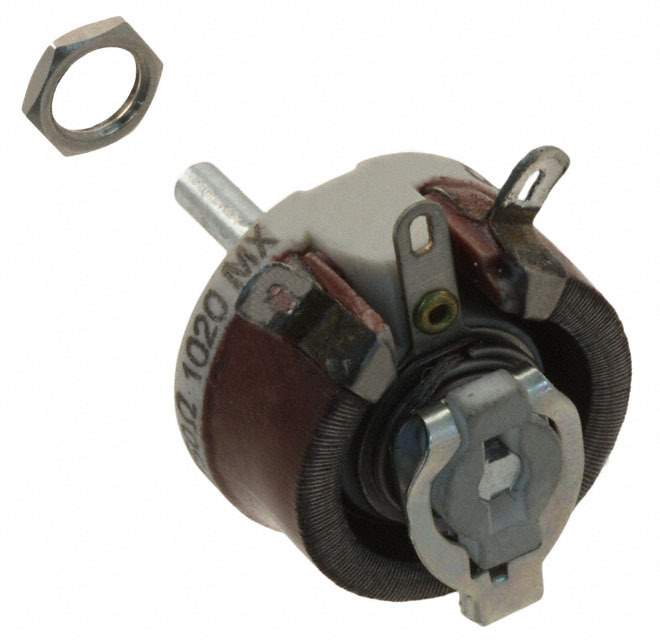

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Rotary Potentiometers, Rheostats
Mfr Ohmite
Series E
Package Bulk
Resistance (Ohms) 1k
Tolerance ±10%
Power (Watts) 12.5W
Built in Switch None
Number of Turns 1
Taper Linear
Number of Gangs 1
Adjustment Type User Defined
Rotation 300°
Resistive Material Wirewound
Termination Style Solder Lug
Actuator Type Slotted
Actuator Length 0.625" (15.88mm)
Actuator Diameter 0.125" (3.18mm)
Bushing Thread 1/4-32
Mounting Type Panel Mount
Size - Body Round - 0.875" Dia (22.23mm)
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.31.0000
Standard Package 1
Win Source Part Number 1057788-RES1K0E
Ultra Librarian 3D Model Ultra Librarian RES1K0E CAD Model

Description

The Ohmite RES1K0E is a high-quality rotary potentiometer with a power rating of 12.5W.

  • Power Rating: 12.5W
  • Tolerance: ±10%
  • Resistance: 1k ohms
  • Taper: Linear
  • Gang: Single
  • Mounting: Panel
  • Actuator: Slotted, 0.125 inches diameter
