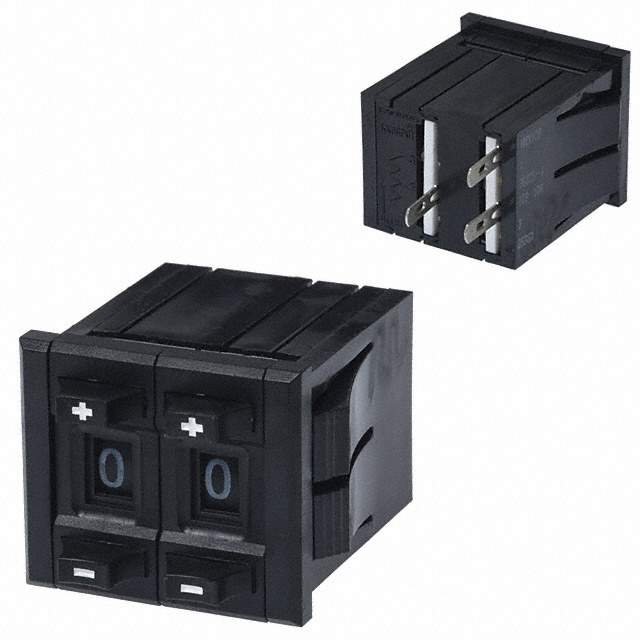

3682S-1-104L Real Image
Same model may have multiple batches, images only for reference.

3682S-1-104L

Part No 3682S-1-104L
Manufacturer Bourns Inc.
Catalog Potentiometers, Variable Resistors
Description Precision Potentiometer 100000 Ohms Plus or Minus 3 Percent Tolerance 2W Max IP40
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Composition Potentiometer
Depth 23.62 mm
Height 26.67 mm
Hole Diameter 21.08 mm
Length 26.67 mm
Max Operating Temperature 85 °C
Max Power Dissipation 2 W
Military Standard Not
Min Operating Temperature -25 °C
Mount Panel
Number of Characters 2
Number of Gangs 2
Packaging Bulk
Power Rating 2 W
Radiation Hardening No
REACH SVHC No SVHC
Resistance 100 kΩ
RoHS Compliant
Schedule B 8533400080, 8533400080
Temperature Coefficient 100 ppm/°C
Termination Solder
Tolerance 3 %
Type Potentiometer
Voltage Rating (DC) 500 V
Weight 16.5 g
Width 23.622 mm
Win Source Part Number 1218362-3682S-1-104L
Categories Potentiometers,Variable Resistors
Manufacturer Bourns Inc.
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3682S-1-104L CAD Model

Description

The Bourns Inc.'s 1218362-3682S-1-104L is a potentiometer-type electronic component.

  • Resistance: 100 kΩ
  • Power Rating: 2 W
  • Gangs: 2
  • Characters: 2
  • Termination: solder
  • Length: 26.67 mm
  • Height: 26.67 mm
  • Width: 23.622 mm
  • Hole Diameter: 21.08 mm
  • Category: potentiometers, variable resistors
  • Popularity: medium
  • RoHS Compliant: yes
  • Voltage Rating (DC): 500V
  • Minimum Operating Temperature: -25°C
  • Maximum Operating Temperature: 85°C
