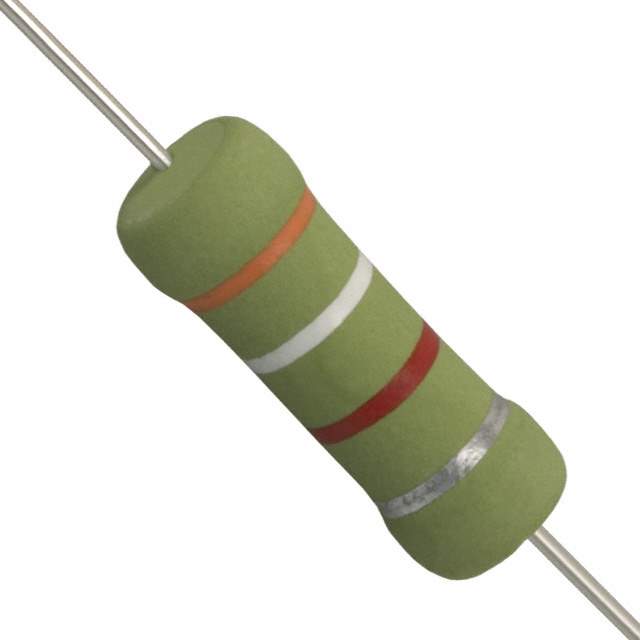

OY392KE Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Ohmite
Series OY
Package Bulk
Resistance 3.9 kOhms
Tolerance ±10%
Power (Watts) 2W
Composition Ceramic
Features Moisture Resistant, Pulse Withstanding
Temperature Coefficient -1000/ -1600ppm/°C
Temperature Range - Operating -40°C ~ 220°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.276" Dia x 0.748" L (7.00mm x 19.00mm)
Number of Terminations 2
Standard Package 50
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1350508-OY392KE
Ultra Librarian 3D Model Ultra Librarian OY392KE CAD Model

Description

The Ohmite OY series resistor is a ceramic resistor with a resistance of 3.9 kOhms and a power of 2W.

  • Tolerance: ±10%
  • Temperature Coefficient: -1000/ -1600ppm/°C
  • Package: Axial
  • Supplier Device Package: Axial
  • Feature: Moisture Resistant and Pulse Withstanding
  • Temperature Range: -40°C ~ 220°C
  • Suitable for: Use in Through Hole Resistors
