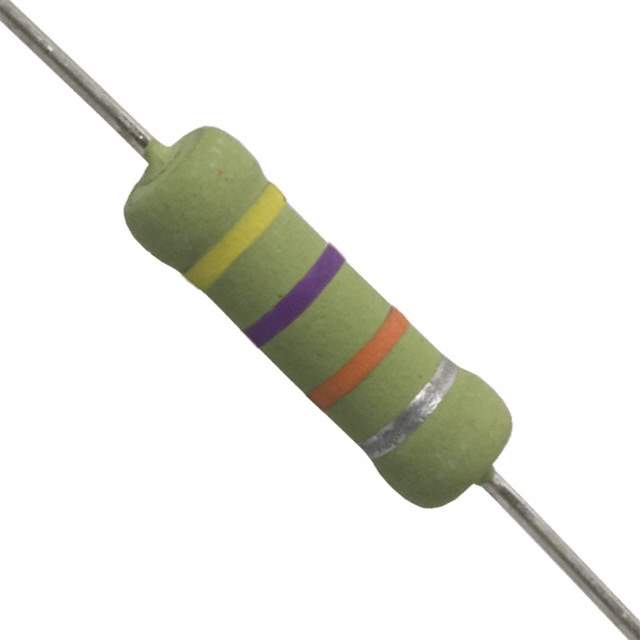

OX473KE Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Ohmite
Series OX
Package Bulk
Resistance 47 kOhms
Tolerance ±10%
Power (Watts) 1W
Composition Ceramic
Features Moisture Resistant, Pulse Withstanding
Temperature Coefficient -1000/ -1600ppm/°C
Temperature Range - Operating -40°C ~ 220°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.217" Dia x 0.650" L (5.50mm x 16.50mm)
Number of Terminations 2
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.21.0090
Standard Package 100
Win Source Part Number 1083413-OX473KE
Ultra Librarian 3D Model Ultra Librarian OX473KE CAD Model

Description

The 1083413-OX473KE resistor from Ohmite is a through-hole resistor from the OX series, with a resistance of 47 kOhms and a power rating of 1W.

  • Series: OX
  • Resistance: 47 kOhms
  • Power Rating: 1W
  • Material: Ceramic
  • Tolerance: ±10%
  • Operating Temperature Range: -40°C to 220°C
  • Temperature Coefficient: -1000/ -1600ppm/°C
  • Package: Axial
  • Terminations: 2
  • Features: Moisture-Resistant, Pulse-Withstanding
  • Dimensions: 0.217" Dia x 0.650" L (5.50mm x 16.50mm)
