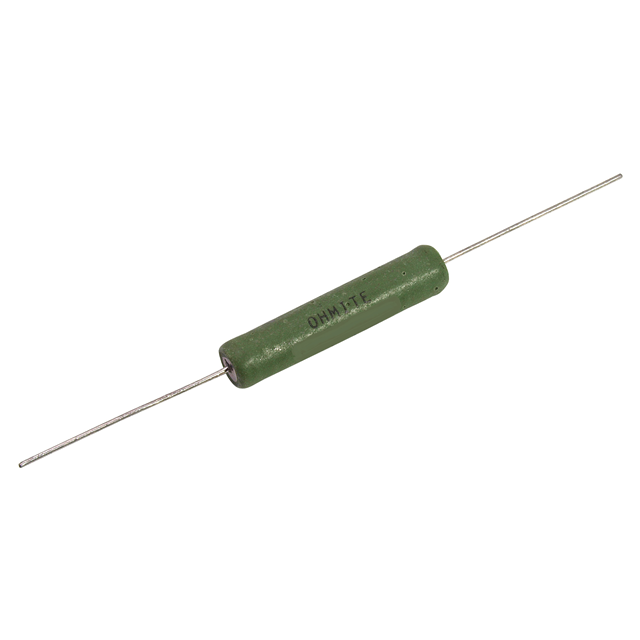

83F249 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Resistors
Manufacturer Ohmite
Series Acrasil 80
Packaging Bulk
Resistance (Ohms) 249
Tolerance ±1%
Power (Watts) 3W
Composition Wirewound
Temperature Coefficient ±20ppm/°C
Package Axial
Manufacturer Package Axial
Dimension 0.217" Dia x 0.594" L (5.50mm x 15.10mm)
Number of Terminations 2
Win Source Part Number 766316-83F249
Popularity Medium
Supply and Demand Status Limited
Quantity per package 10
Family Name 80
Introduction Date April 22, 2003
ECCN EAR99
Country of Origin Mexico
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 83F249 CAD Model

Description

The Ohmite 766316-83F249 is a high-quality electronic component from Ohmite.

  • Series: Acrasil 80
  • Packaging: Bulk
  • Tolerance: ±1%
  • Temperature Coefficient: ±20ppm/°C
  • Power Rating: 3W
  • Resistance: 249 ohms
  • RoHS Compliance: Yes
