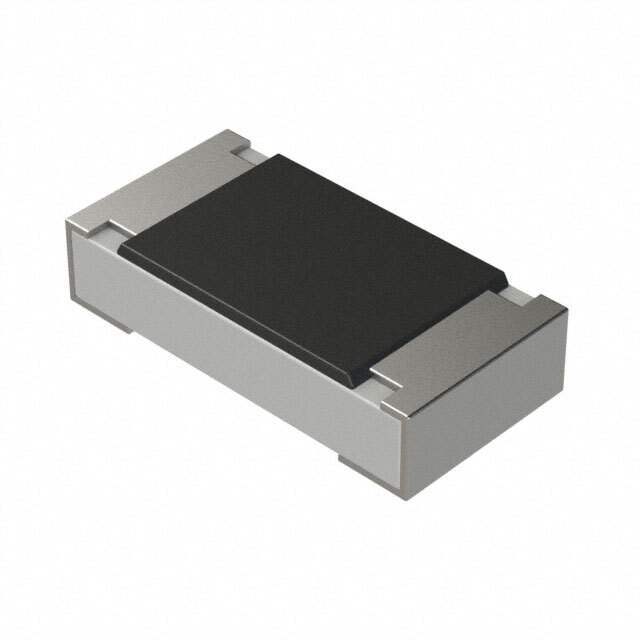

KDV06DR560ET Ohmite
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1303926-KDV06DR560ET
Manufacturer Ohmite
Category Resistors- Chip Resistor - Surface Mount
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Resistance (Ohms) 560 mOhms
Tolerance ±0.5%
Power (Watts) 0.2W, 1/5W
Composition Metal Film
Temperature Coefficient ±50ppm/°C
Operating Temperature -55°C ~ 155°C
Ultra Librarian 3D Model Ultra Librarian KDV06DR560ET CAD Model

Description

F e a t u r e s • Low Resistance / TCR / Inductance<br /> • Excellent long-term stability<br /> • High precision current sensing<br /> • High power capability<br /> • Halogen free and lead free • RoHs compliant
