Same model may have multiple batches, images only for reference.

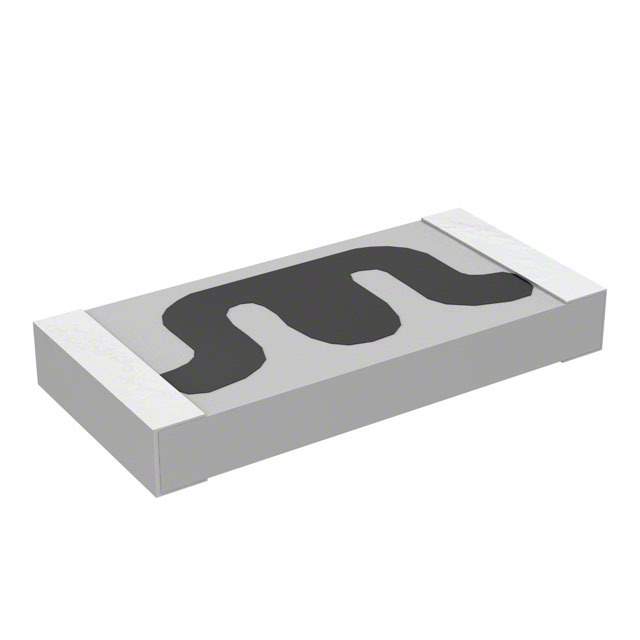

HVC1206T1006JET Real Image
Same model may have multiple batches, images only for reference.

HVC1206T1006JET

Part No HVC1206T1006JET
Manufacturer Ohmite
Catalog Chip Resistor - Surface Mount
Description RES SMD 100M OHM 5% 1/4W 1206 / 100 MOhms ±5% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) High Voltage Thick Film
Datasheet
HVC1206T1006JET Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Ohmite
Series HVC
Package Tape & Reel
Resistance 100 mOhms
Tolerance ±5%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features High Voltage
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 0.126" L x 0.059" W (3.20mm x 1.50mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names HVC1206T1006JETTR,HVC1206T1006JETCT,HVC1206T1006JETDKR
Standard Package 500
Win Source Part Number 1097670-HVC1206T1006JET
Ultra Librarian 3D Model Ultra Librarian HVC1206T1006JET CAD Model

Description

The Ohmite 1097670-HVC1206T1006JET resistor is a thick film component that belongs to the Chip Resistor - Surface Mount category.

  • Series: HVC
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.25W, 1/4W
  • Resistance: 100 mOhms
  • Package: Tape & reel
  • Dimensions: 0.126" L x 0.059" W (3.20mm x 1.50mm)
