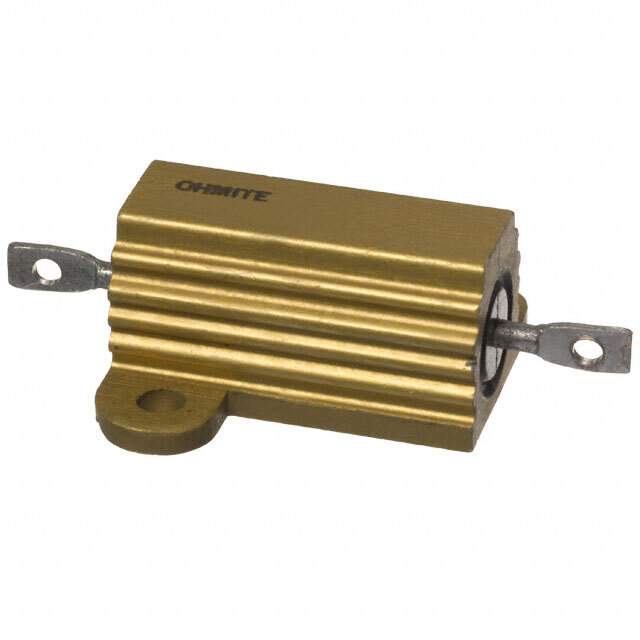

HS15 30R F Real Image
Same model may have multiple batches, images only for reference.

HS15 30R F

Part No HS15 30R F
Manufacturer Ohmite
Catalog Chassis Mount Resistors
Description RES CHAS MNT 30 OHM 1% 15W
Datasheet
HS15 30R F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chassis Mount Resistors
Mfr Ohmite
Series ARCOL, HS
Package Bulk
Product Status Active
Resistance 30 Ohms
Tolerance ±1%
Power (Watts) 15W
Composition Wirewound
Temperature Coefficient ±100ppm/°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Size / Dimension 0.783" L x 0.440" W (19.90mm x 11.20mm)
Height - Seated (Max) 0.433" (11.00mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Standard Package 66 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 920601-HS15 30R F
Ultra Librarian 3D Model Ultra Librarian HS15 30R F CAD Model

Description

The Ohmite 920601-HS15 30R F is a chassis mount resistor.

  • Series: ARCOL HS
  • Power Rating: 15W
  • Resistance Value: 30 Ohms
  • Tolerance: ±1%
  • Material: Wirewound
  • Package: Bulk
  • Lead Style: Solder lugs
  • Size: 0.783" L x 0.440" W (19.90mm x 11.20mm)
  • Height: 0.433" (11.00mm)
  • Coating: Aluminum
  • Mounting: Flange
