Same model may have multiple batches, images only for reference.

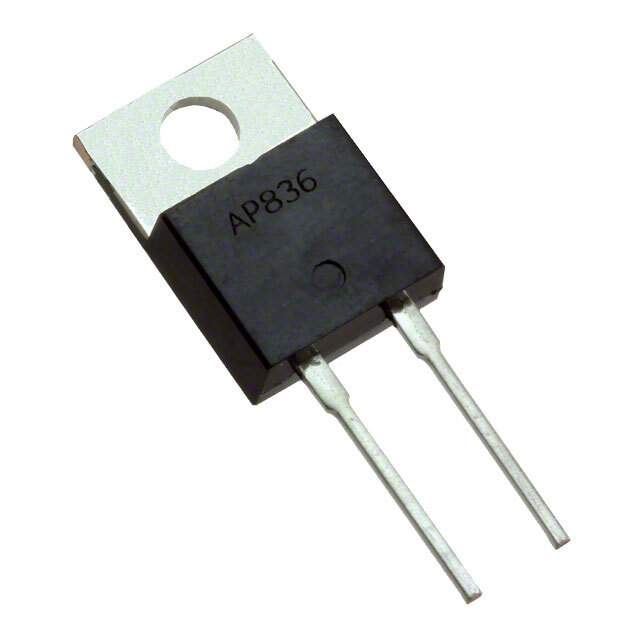

AP836 330R J Real Image
Same model may have multiple batches, images only for reference.

AP836 330R J

Part No AP836 330R J
Manufacturer Ohmite
Catalog Through Hole Resistors
Description RES 330 OHM 5% 35W TO220 / 330 Ohms ±5% 35W Through Hole Resistor TO-220-2 Non-Inductive Thick Film
Datasheet
AP836 330R J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Ohmite
Series ARCOL, AP836
Package Tray
Resistance 330 Ohms
Tolerance ±5%
Power (Watts) 35W
Composition Thick Film
Features Non-Inductive
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -60°C ~ 150°C
Package / Case TO-220-2
Supplier Device Package TO-220
Dimension 0.400" L x 0.175" W (10.16mm x 4.44mm)
Height - Seated (Max) 0.591" (15.00mm)
Number of Terminations 2
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Other Names AP836330RJ,AP836 330R J-ND
Standard Package 100
Win Source Part Number 962336-AP836 330R J
Ultra Librarian 3D Model Ultra Librarian AP836 330R J CAD Model

Description

The AP836 series resistor from ARCOL is a non-inductive thick film resistor with a resistance of 330 Ohms and a power rating of 35W.

  • Manufacturer: ARCOL
  • Resistance: 330 Ohms
  • Power Rating: 35W
  • Temperature Coefficient: ±100ppm/°C
  • Tolerance: ±5%
  • Operating Temperature Range: -60°C to 150°C
