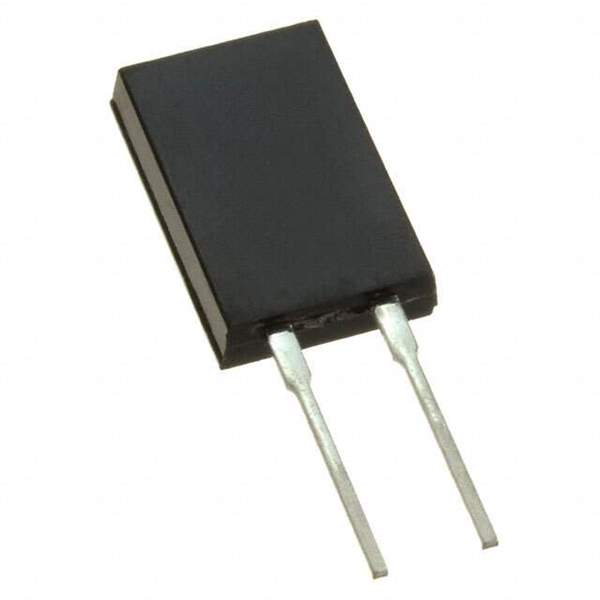

AP101180RJ Real Image
Same model may have multiple batches, images only for reference.

AP101180RJ

Part No AP101180RJ
Manufacturer Ohmite
Catalog Through Hole Resistors
Description Res 180 Ohm 5% 100/3.5W ±100ppm/C Molded TO-247 RDL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case / Package TO-247
Composition Thick Film
Features Moisture Resistant
Height 20.955 mm
Length 15.748 mm
Max Operating Temperature 175 °C
Max Power Dissipation 100 W
Min Operating Temperature -65 °C
Number of Terminations 2
Power Rating 100 W
REACH SVHC Unknown
Resistance 180 Ω
RoHS Compliant
Temperature Coefficient 100 ppm/°C
Tolerance 5 %
Voltage Rating 700 V
Voltage Rating (DC) 700 V
Width 4.953 mm
Win Source Part Number 1192213-AP101180RJ
Categories Through Hole Resistors
Manufacturer Ohmite
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AP101180RJ CAD Model

Description

The Ohmite 1192213-AP101180RJ is a Moisture Resistant resistor with a voltage rating of 700V.

  • Voltage Rating: 700V
  • Length: 15.748mm
  • Width: 4.953mm
  • Height: 20.955mm
  • Tolerance: 5%
  • Temperature Coefficient: 100 ppm/°C
  • Technology: Thick Film
  • Terminations: 2
  • Resistance: 180Ω
  • Power Rating: 100W
  • Case: TO-247
  • Mounting Type: Through-Hole
  • Supply and Demand: Limited
  • Operating Temperature (Min): -65°C
  • Operating Temperature (Max): 175°C
  • RoHS Compliant: Yes
  • REACH SVHC: Unknown
