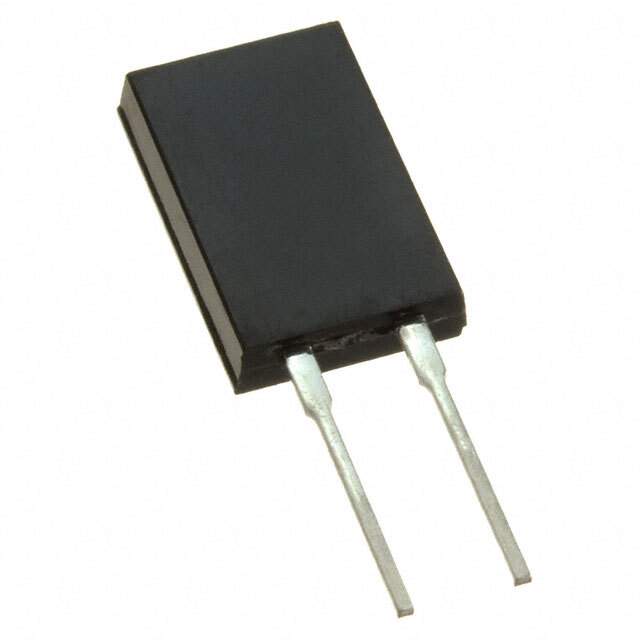

AP101 2K2 J Real Image
Same model may have multiple batches, images only for reference.

AP101 2K2 J

Part No AP101 2K2 J
Manufacturer Ohmite
Catalog Through Hole Resistors
Description RES 2.2K OHM 5% 100W TO247 / 2.2 kOhms ±5% 100W Through Hole Resistor TO-247-2 Moisture Resistant, Non-Inductive Thick Film
Datasheet
AP101 2K2 J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr Ohmite
Series ARCOL, AP101
Package Tray
Resistance 2.2 kOhms
Tolerance ±5%
Power (Watts) 100W
Composition Thick Film
Features Moisture Resistant, Non-Inductive
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -65°C ~ 175°C
Package / Case TO-247-2
Supplier Device Package TO-247
Size / Dimension 0.620" L x 0.195" W (15.75mm x 4.95mm)
Height - Seated (Max) 0.825" (20.96mm)
Number of Terminations 2
Standard Package 25
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Win Source Part Number 1351270-AP101 2K2 J
Ultra Librarian 3D Model Ultra Librarian AP101 2K2 J CAD Model

Description

The ARCOL AP101 series of through hole resistors are designed to meet the needs of high power and voltage handling applications.

  • Resistance Value: 2.2 kOhms
  • Power Rating: 100W
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Composition: thick film
  • Features: moisture resistant and non-inductive
  • Package: TO-247-2
  • Size: 0.620" L x 0.195" W (15.75mm x 4.95mm)
  • Height: 0.825" (20.96mm)
  • Lead Style: through hole
  • Mounting Feature: flanges
  • Packaging: tray
  • Standard Package: 25
