The TJA1102AHN/S/0Z is a robust, high-performance automotive Ethernet transceiver designed and manufactured by NXP Semiconductors. As an integral component of in-vehicle networks, this product is engineered to facilitate fast and reliable data communication, meeting the stringent requirements of the automotive industry.

Key Features

• High-Speed Ethernet: Supports 100BASE-T1 Ethernet, enabling up to 100 Mbps data rates over a single twisted-pair cable, optimizing cable harness weight and cost.
• Robustness: Designed with robustness in mind, it is compliant with automotive EMC standards and can withstand the harsh electrical environments of automotive applications.
• Low Power Mode: Features a low-power mode with wake-up capability, significantly reducing power consumption when the network is idle or in standby.

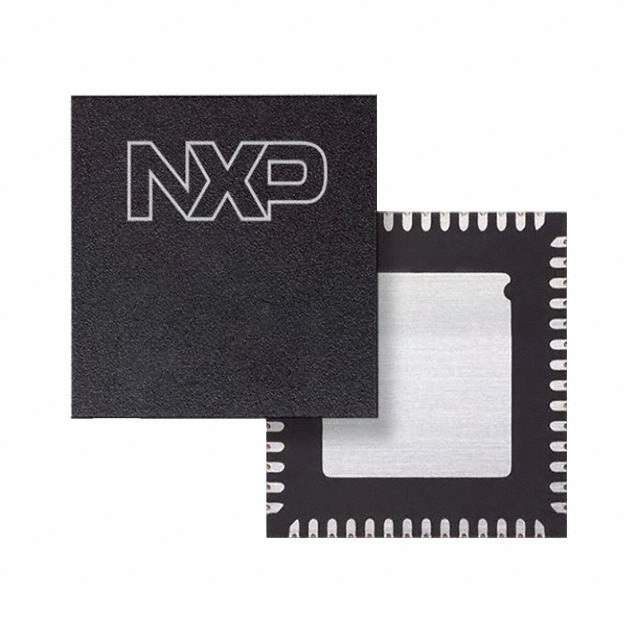

• Small Form Factor: Available in a compact HVQFN package, it is suitable for space-constrained applications.
• Integrated Diagnostics: Comes with advanced diagnostic features that enable fault detection and management, enhancing system reliability.

Applications

The TJA1102AHN/S/0Z Ethernet transceiver is ideal for a range of automotive applications, including:

• Advanced Driver Assistance Systems (ADAS)
• Infotainment and Telematics
• On-board Diagnostics and Vehicle Control
• Camera and Sensor Data Integration

Technical Specifications

Quality and Reliability

Built to meet the ISO 26262 standard for functional safety in road vehicles, the TJA1102AHN/S/0Z transceiver ensures high reliability and performance. Its construction is tailored for longevity and consistent operation in the demanding conditions of automotive environments.
