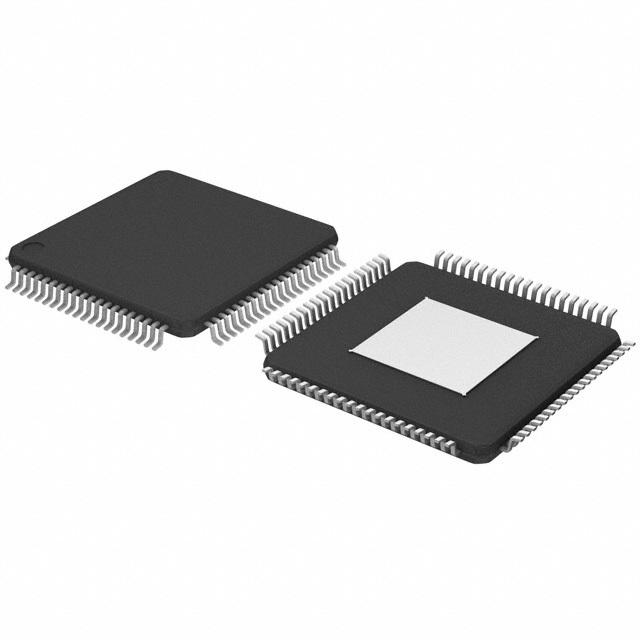

Product Overview: TDA9983BHW/15/C1,5 by NXP

The TDA9983BHW/15/C1,5 is a cutting-edge HDMI transmitter IC designed and manufactured by NXP Semiconductors, a leader in the semiconductor industry. This high-definition multimedia interface transmitter is ideal for a broad range of applications that require the transmission of high-quality digital video and audio signals over a single cable.

Key Features

• High-Definition Support: The TDA9983BHW/15/C1,5 supports high-definition video formats, making it suitable for use in advanced digital TV sets, PC monitors, and multimedia devices.
• Audio Integration: This IC is capable of transmitting both video and audio signals, supporting standard, enhanced, or high-definition video, as well as multiple audio formats including 8-channel I2S and S/PDIF audio interfaces.
• HDMI 1.3 Compatibility: The device is compliant with HDMI 1.3 specifications, ensuring compatibility with the latest HDMI-enabled devices and features such as deep color and x.v.Color.
• Content Protection: It includes HDCP 1.2 (High-bandwidth Digital Content Protection) for secure transmission of protected content, a requirement for many high-definition sources.
• Advanced Color Spaces: Support for a wide range of color spaces including sRGB, YCbCr 4:4:4, and YCbCr 4:2:2, allows for flexible and high-quality video processing.
• Pixel Clock: The TDA9983BHW/15/C1,5 has a pixel clock range of 25 MHz to 165 MHz, making it adaptable to various screen resolutions and refresh rates.

Applications

The versatile nature of the TDA9983BHW/15/C1,5 makes it an excellent choice for a variety of applications. It is particularly well-suited for:

• Digital TV sets and set-top boxes
• PC monitors and laptops
• Home theater systems
• Game consoles
• Video projectors

Technical Specifications

For detailed technical specifications, designers and engineers should refer to the TDA9983BHW/15/C1,5 datasheet provided by NXP Semiconductors. The datasheet offers comprehensive information on the IC's electrical characteristics, pin configurations, timing diagrams, and application circuits.

In conclusion, the TDA9983BHW/15/C1,5 from NXP is a robust and reliable solution for high-quality digital video and audio transmission, offering a suite of features that make it a top choice for manufacturers and designers in the multimedia industry.
