Products specifications

Categories Integrated Circuits
Manufacturer NXP
Packaging Tube/Rail
Status Obsolete(EOL)
Applications General Purpose
Number of Circuits 1
-3db Bandwidth 47MHz
Slew Rate 10 V/μs
Operating Supply Current 45mA
Channel Output Current 100mA
Mounting Through Hole

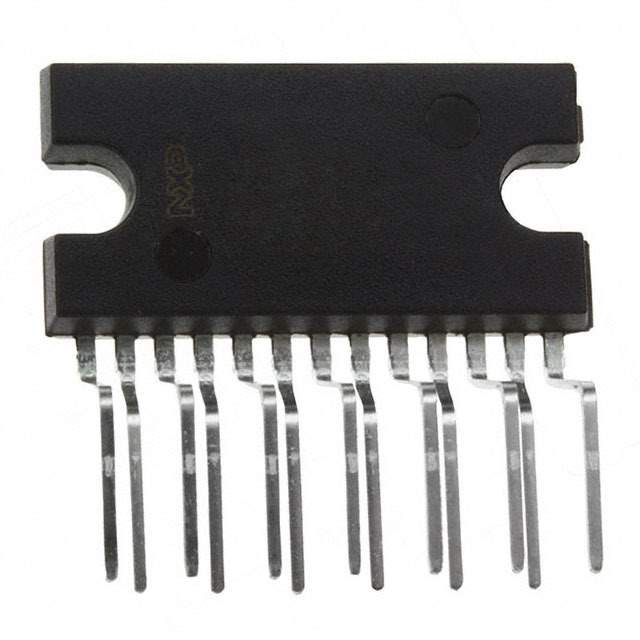

Case / Package DBS13P
Win Source Part Number 053093-TDA6120
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TDA6120 CAD Model

Description

The TDA6120 is a cutting-edge Quadrature Phase-Shift Keying (QPSK) demodulator designed by NXP Semiconductors, a leader in providing innovative and high-performance semiconductor solutions. This component is specifically engineered to facilitate the demodulation of QPSK-modulated signals commonly used in satellite and cable digital communication systems.

Key Features

  • High Integration: The TDA6120 integrates several key functions into a single chip, which simplifies design, reduces board space, and enhances reliability.
  • Low Power Consumption: With advanced design techniques, this demodulator maintains high performance while keeping power consumption to a minimum, making it ideal for energy-sensitive applications.
  • Wide Frequency Range: It is capable of operating over a broad range of intermediate frequencies (IF), providing flexibility in various system designs.
  • Excellent Noise Performance: The device features very low phase noise and high sensitivity, which translates to improved signal quality and robustness against interference.
  • Easy Interface: The TDA6120 is designed to interface seamlessly with other components in a digital communication system, including tuners and MPEG decoders.

Applications

The TDA6120 is highly suitable for a variety of applications where reliable QPSK demodulation is required. This includes, but is not limited to:

  • Satellite Set-Top Boxes
  • Cable Modems
  • Digital TV Receivers
  • Terrestrial Broadcasting Equipment

Technical Specifications

Some of the technical specifications of the TDA6120 include:

  • Supply Voltage: 5V
  • Low Phase Noise
  • Carrier Recovery Range: ±5MHz
  • Symbol Rates: Up to 45 Msymbols/s
  • Integrated Voltage Regulators

In conclusion, the NXP TDA6120 is a highly integrated and efficient QPSK demodulator, ideal for modern digital communication systems. Its combination of low power consumption, high performance, and ease of integration makes it a top choice for designers looking to enhance their digital communication solutions.
