NXP S9S08SG16E1MTGR Microcontroller

The NXP S9S08SG16E1MTGR is a high-performance microcontroller that is part of the S08 family, designed to offer a cost-effective solution for a broad range of applications. This 8-bit MCU is built upon the HCS08 core, which operates at a maximum frequency of 40 MHz, providing the computational power necessary for embedded systems requiring efficient processing and a variety of I/O options.

With 16KB of flash memory, the S9S08SG16E1MTGR offers ample space for application code, which is crucial for developers who need to implement complex programs without external memory. Additionally, it comes with 1KB of RAM, allowing for efficient data handling and manipulation within applications that require real-time processing and multitasking capabilities.

The device's robust design includes a range of integrated features that enhance its performance and flexibility. It has an 8-channel, 10-bit Analog-to-Digital Converter (ADC) that enables the microcontroller to interface with analog sensors and devices, thus making it ideal for applications such as industrial control systems, home automation, and monitoring systems. Furthermore, its two 16-bit timer/pulse-width modulators (TPM) support precise timing operations and PWM outputs, which are essential for motor control and other timing-critical tasks.

Connectivity is another strong point of the S9S08SG16E1MTGR, as it includes a Serial Communications Interface (SCI) that facilitates serial communication with other devices, such as computers, sensors, and other microcontrollers. The inclusion of an Inter-Integrated Circuit (I²C) bus allows for easy connection to a wide array of peripherals, making this MCU a versatile choice for complex embedded systems.

For safety-critical applications, the S9S08SG16E1MTGR comes with a watchdog timer to ensure the system remains operational by resetting the MCU in case of software anomalies. Moreover, its low power consumption makes it suitable for battery-powered devices, contributing to longer operational times and energy efficiency.

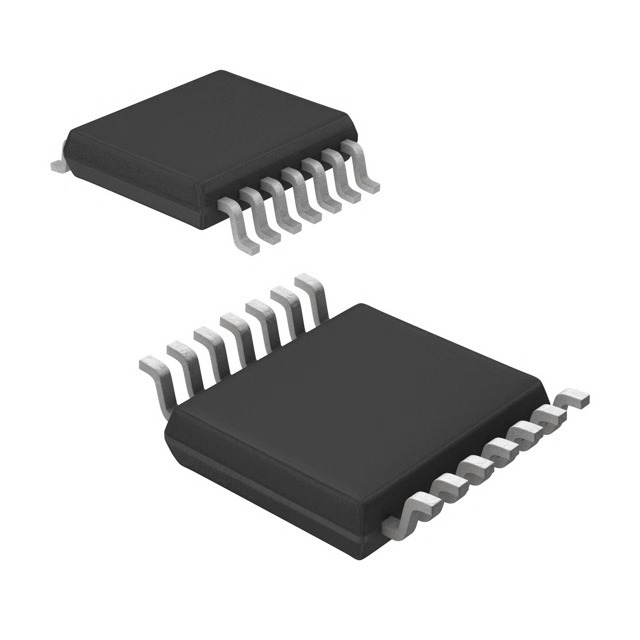

In terms of packaging, the S9S08SG16E1MTGR is available in a TSSOP-16 package, which is known for its compact footprint and suitability for space-constrained applications. This, combined with its wide operating voltage range from 2.7V to 5.5V, ensures that the microcontroller can be integrated into various designs with minimal hassle.

Overall, the NXP S9S08SG16E1MTGR is a versatile and powerful microcontroller that is well-suited for a multitude of embedded applications where cost, performance, and low power are key considerations.
