Products specifications

Manufacturer NXP
Win Source Part Number 1240758-PTVS5V0P1UP
Manufacturer Homepage www.nxp.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PTVS5V0P1UP CAD Model

Description

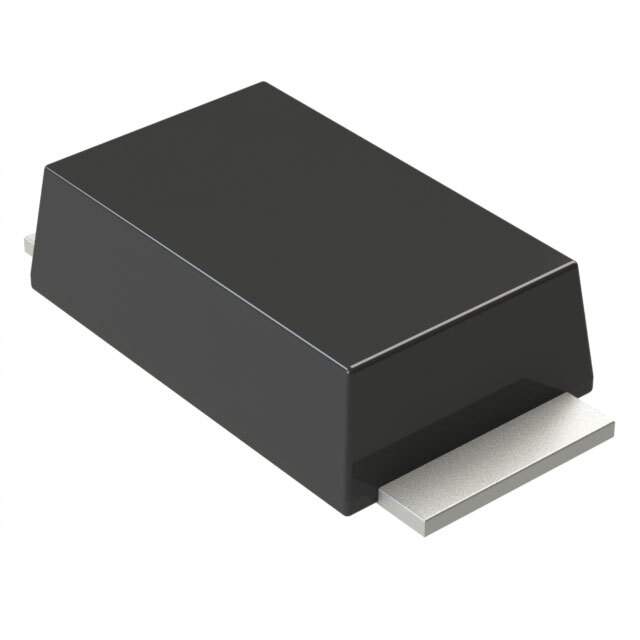

Product Overview: NXP's PTVS5V0P1UP TVS Diode

The NXP PTVS5V0P1UP is a high-quality Transient Voltage Suppressor (TVS) diode designed to protect sensitive electronic circuits from voltage spikes and surges. This robust component is specifically engineered to safeguard against transient voltage events, such as those caused by lightning strikes, electrostatic discharge (ESD), and other sudden voltage transients that can damage electronics.

Key Features

  • Stand-off Voltage: The device features a stand-off voltage of 5.0V, which makes it suitable for a wide range of applications where this level of protection is required.
  • Peak Pulse Power: With an impressive peak pulse power dissipation of 400W (10/1000μs waveform), the PTVS5V0P1UP can handle significant power spikes, ensuring the safety of the protected circuit.
  • Low Clamping Voltage: The low clamping voltage of the diode ensures that even when a voltage spike occurs, the voltage presented to the protected device remains within safe limits, preventing damage.
  • Uni-directional: As a uni-directional TVS diode, the PTVS5V0P1UP is optimized for DC applications and provides targeted protection in one direction.
  • Compact Package: The small SOD-128 package makes it ideal for space-constrained applications without compromising on the protection capabilities.

Applications

The versatile nature of the NXP PTVS5V0P1UP TVS diode allows for its use in a variety of applications, including but not limited to:

  • Consumer electronics such as smartphones, tablets, and laptops
  • Industrial control systems
  • Automotive electronics
  • Power supply units
  • Telecommunication systems

Reliability and Quality

NXP is known for its commitment to quality and reliability, and the PTVS5V0P1UP is no exception. This TVS diode is manufactured to high standards, ensuring that it meets the rigorous demands of industrial and consumer electronics. With its ability to protect against severe voltage transients and its robust design, the PTVS5V0P1UP is an essential component for any application where voltage spikes are a concern.
