The NXP PESD5V0F1USF is a state-of-the-art ESD protection device designed to safeguard high-speed data lines from electrostatic discharge (ESD) that can cause irreparable damage to sensitive electronic components. This compact and efficient solution is ideal for a wide range of applications, including mobile phones, portable devices, and other space-constrained applications where high-speed data lines require robust protection.

Key Features

• Ultra-low Clamping Voltage: The PESD5V0F1USF provides an ultra-low clamping voltage, ensuring that even the most sensitive components are shielded from the harmful effects of ESD events.
• High ESD Protection Level: With its capability to withstand ESD discharges up to 30 kV (air and contact discharge), this device exceeds the highest level of the IEC 61000-4-2 standard, offering superior protection for your electronic designs.
• Low Capacitance: The device features a low capacitance design, making it suitable for protecting high-speed data lines without compromising signal integrity.

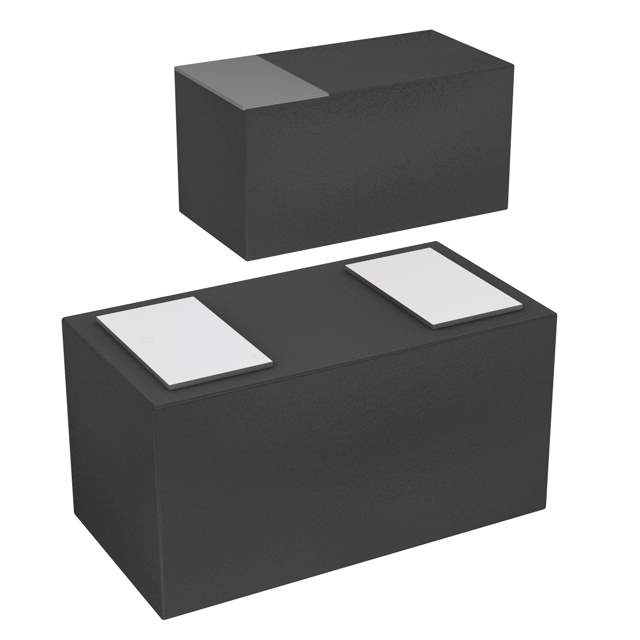

• Small Form Factor: The PESD5V0F1USF comes in an ultra-small DFN1006-2 (SOD882) leadless package, which minimizes PCB space requirements and is ideal for modern compact electronic assemblies.
• High Reliability: Manufactured by NXP, a leader in semiconductor solutions, this product is built to the highest quality standards, ensuring high reliability and performance in the most demanding applications.

Applications

With its impressive ESD protection capabilities, the NXP PESD5V0F1USF is well-suited for a variety of applications where data line protection is critical. These include:

• USB 2.0 and 3.0 interfaces
• HDMI, MHL, and DisplayPort interfaces
• Antenna and RF interfaces
• High-speed data lines in portable electronics
• Camera links and other multimedia interfaces

Conclusion

In summary, the NXP PESD5V0F1USF is a versatile and reliable ESD protection solution that offers exceptional performance in a tiny package. It is an excellent choice for designers looking to enhance the durability and longevity of their products by providing robust protection against electrostatic discharge.
