Product Overview: NXP PESD24VL2BT

The NXP PESD24VL2BT is a state-of-the-art bidirectional ElectroStatic Discharge (ESD) protection device designed to safeguard high-speed interfaces against transient voltage spikes that can cause irreversible damage to sensitive electronic components. This compact and efficient solution is an essential component for modern electronic designs, where the integrity and reliability of data lines are of paramount importance.

Key Features

• ESD Protection: The PESD24VL2BT provides robust ESD protection up to 24 V, ensuring that devices are shielded from the harmful effects of electrostatic discharge events.
• Bidirectional Design: This device is bidirectional, meaning it can protect data lines irrespective of the direction of the ESD pulse, offering versatile application across various interface standards.
• Low Capacitance: With ultra-low line capacitance, the PESD24VL2BT minimizes signal degradation, making it ideal for high-speed data applications such as USB, HDMI, and Ethernet.

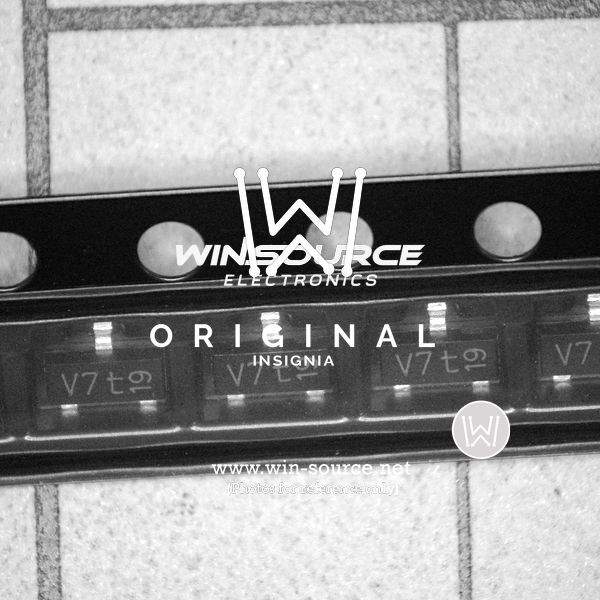

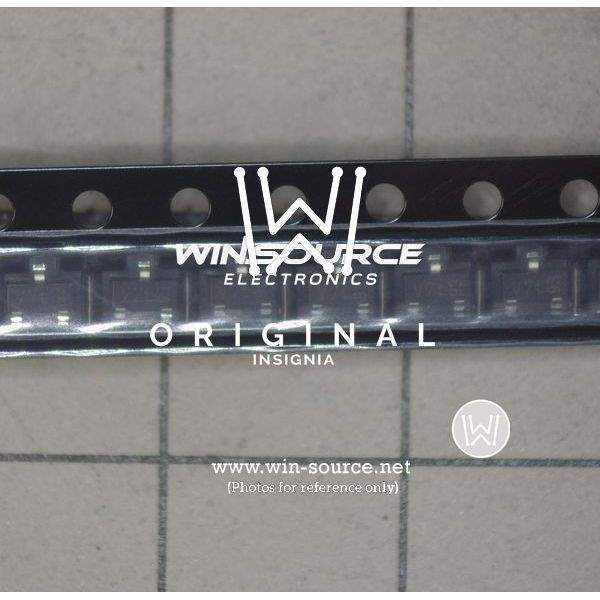

• Small Package: Housed in a small SOT23 package, it occupies minimal board space, which is crucial for compact electronic assemblies.

Applications

The PESD24VL2BT is well-suited for a wide range of applications where data line protection is critical. These include:

• Mobile Devices
• Computers and Peripherals
• Networking Equipment
• Audio and Video Interfaces
• Portable Electronics

Quality and Reliability

NXP Semiconductors is renowned for its commitment to quality and reliability, and the PESD24VL2BT is no exception. It is manufactured to the highest standards, ensuring that it meets the stringent requirements of the electronics industry.

Environmental Compliance

The PESD24VL2BT complies with environmental regulations, including RoHS and REACH, reflecting NXP's dedication to sustainability and environmental responsibility.

In conclusion, the NXP PESD24VL2BT is an essential protective component for any electronic design that requires reliable, high-speed data line ESD protection. Its combination of performance, compactness, and quality makes it an excellent choice for designers looking to enhance the durability and integrity of their products.
