Introducing the PCA9635PW,118 LED Driver from NXP Semiconductors

The PCA9635PW,118 is a sophisticated LED driver IC, expertly crafted by NXP Semiconductors, designed to control an array of LEDs with precision and efficiency. This component is a part of the PCA963X family, which is renowned for its ability to provide dimming and blinking for up to 16 individual LEDs. With its I²C-bus interface, the PCA9635PW,118 ensures seamless communication with most microcontrollers, making it an ideal solution for a wide range of applications, from general lighting to signal and symbol illumination in consumer electronics.

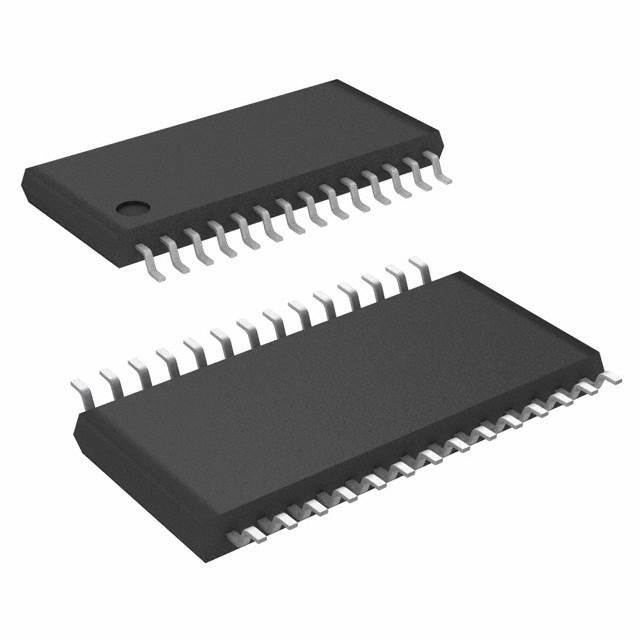

Encased in a TSSOP28 package, the PCA9635PW,118 is not only compact but also offers a feature-rich experience. It operates on a supply voltage ranging from 2.3V to 5.5V, allowing for versatile deployment across various systems. One of the standout features of this LED driver is its built-in oscillator for PWM control. This feature negates the need for an external PWM controller, thus simplifying the design and reducing the overall component count.

The PCA9635PW,118 supports both 100 kHz and 400 kHz clock frequencies, providing flexibility for system design and ensuring compatibility with both standard and fast-mode I²C protocols. Each LED output can be off, on, or set at its own individual PWM brightness level, which is a boon for creating sophisticated lighting effects without taxing the main processor.

Furthermore, the device comes with a group dimming/blinking control that can be used for both global and individual LED adjustments. This is particularly useful in scenarios where multiple LEDs need to be dimmed or blinked simultaneously, such as in status indicators or backlit panels. Additionally, the PCA9635PW,118 has an active LOW output enable feature that allows for hardware shutdown if necessary.

With built-in open-drain, active LOW outputs, and no need for external resistors, this LED driver simplifies the design of LED systems and enhances reliability. The PCA9635PW,118 also incorporates thermal shutdown protection and features a noise filter on the SDA/SCL inputs to ensure stable operation even in electrically noisy environments.

In summary, the PCA9635PW,118 from NXP Semiconductors is a versatile, efficient, and reliable solution for controlling multiple LEDs. Its rich set of features and ease of use make it an excellent choice for designers looking to enhance their LED lighting applications.
