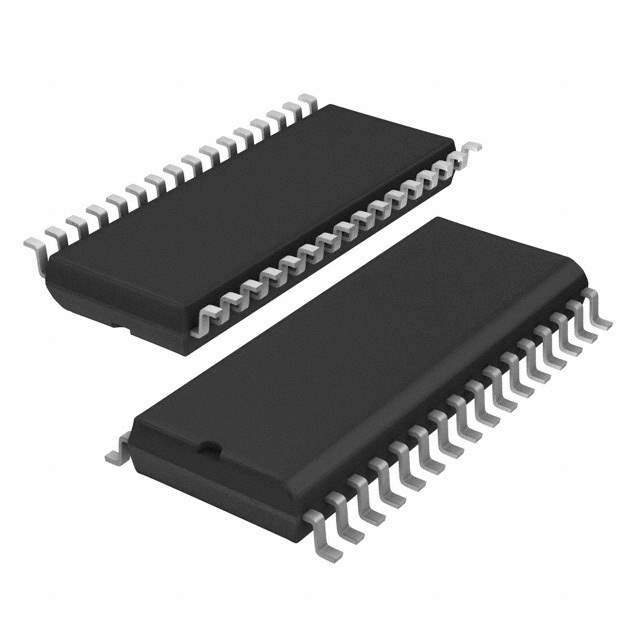

The NXP PCA9625D/S911 is a sophisticated LED driver designed to manage and extend the capabilities of LED illumination systems. This component is part of NXP's extensive portfolio of LED drivers that utilize I²C-bus interface technology, allowing for seamless communication and control in complex lighting setups.

Key Features:

• 16 LED Drivers: Each output can be off, on, or blinking at a programmable rate, providing versatility in creating various lighting effects and statuses.
• I²C Interface: The PCA9625D/S911 features an I²C-bus interface that supports up to 400 kHz (Fast-mode) and 1000 kHz (Hs-mode) clock frequency, enabling quick and efficient communication with microcontrollers or other I²C devices.
• Programmable LED Brightness: The device offers 256-step (8-bit) linear programmable brightness control per LED output, allowing for precise adjustment of the light intensity.
• Group Dimming/Blending: The built-in group dimming/blinking control allows for simultaneous control of specific groups of LEDs, enhancing the capability to create dynamic lighting effects.
• Hardware Shutdown Pin: An external hardware shutdown feature is available, which can be used to turn off all LED outputs, helping to conserve power when necessary.
• Error Detection: The PCA9625D/S911 includes an error detection feature that identifies open-circuit and short-circuit LED errors, ensuring reliability and safety in operation.
• Supply Voltage Range: The device operates on a supply voltage range of 2.3 V to 5.5 V, accommodating various power environments.
• Output Current: Each LED output can sink up to 25 mA, allowing the driver to power a wide range of LED types.

Applications:

The PCA9625D/S911 is ideal for driving LEDs in a variety of applications, such as:

• Automotive interior lighting
• RGB or monochrome LED displays
• Backlighting for LCD displays
• Keypad backlights for mobile devices
• Indicator and status lights
• Home automation and smart lighting systems

With its advanced features and I²C-bus interface, the NXP PCA9625D/S911 provides a compact, flexible, and efficient solution for controlling LEDs in both simple and complex lighting systems.
