Products specifications

Category Integrated Circuits (ICs) - Linear - Amplifiers - Video Amps and Modules
Mfr NXP
Package Tray
Product Status Obsolete
Applications CATV
Number of Circuits 1
Current - Supply 310 mA
Mounting Type Chassis Mount
Package / Case Module
Supplier Device Package 7-CATV Module
Base Product Number MHW63
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 847354-MHW6342T
Ultra Librarian 3D Model Ultra Librarian MHW6342T CAD Model

Description

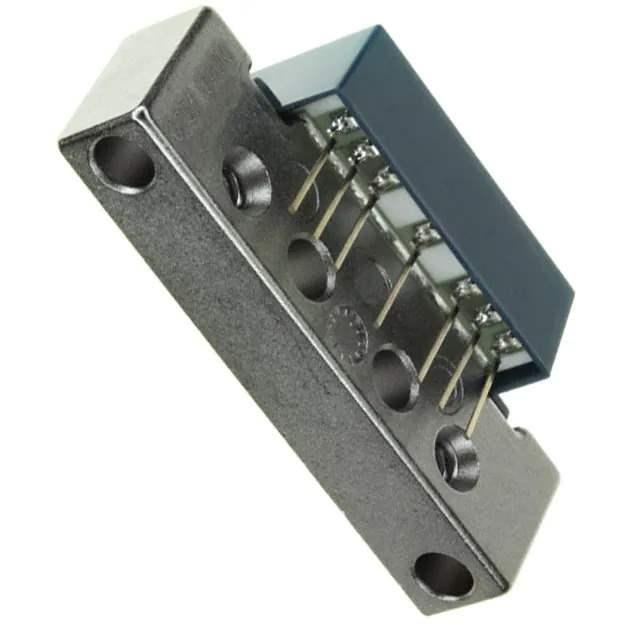

The NXP MHW6342T is an advanced RF amplifier designed for use in CATV applications, providing a robust solution for signal amplification needs. This high-performance device is engineered to deliver exceptional output power, gain, and linearity, making it an ideal choice for systems that require reliable and consistent signal strength.

Key Features

  • Frequency Range: The MHW6342T operates within a 50 to 860 MHz frequency range, which is well-suited for a broad spectrum of CATV channels.
  • High Output Power: It is capable of delivering a high output power level, ensuring clear signal transmission even over long distances and through various types of media.
  • Excellent Linearity: The device maintains excellent linearity, which is crucial for maintaining signal integrity and reducing distortion in multi-channel environments.
  • Integrated Features: The MHW6342T integrates several features such as input and output matching networks, which simplifies the design and reduces external component requirements.
  • Thermal Performance: Designed with thermal performance in mind, the MHW6342T operates efficiently, with a heat sink that ensures stability and longevity even under high-temperature conditions.

Applications

The MHW6342T is primarily used in the infrastructure of cable television networks, where it amplifies the TV signals before they are sent to subscribers' homes. It is also suitable for use in distribution systems where multiple amplifiers are needed to maintain signal quality across a wide coverage area.

Reliability and Quality

NXP is known for its commitment to quality and reliability, and the MHW6342T is no exception. It is built to meet the high standards expected in professional broadcasting and telecommunications equipment, ensuring long-term reliability and performance.

Conclusion

In summary, the NXP MHW6342T is a powerful and reliable RF amplifier that offers a combination of high output power, excellent linearity, and integrated features. Its robust design and thermal management make it an excellent choice for CATV systems operators looking to enhance their network's performance and reliability.
