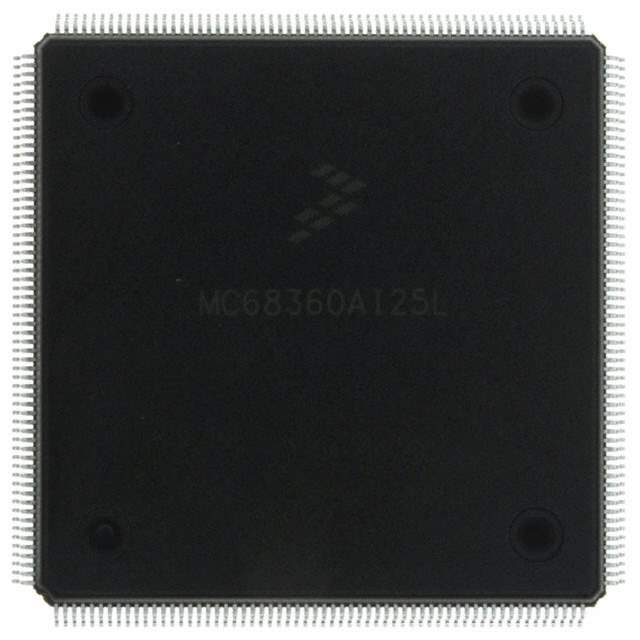

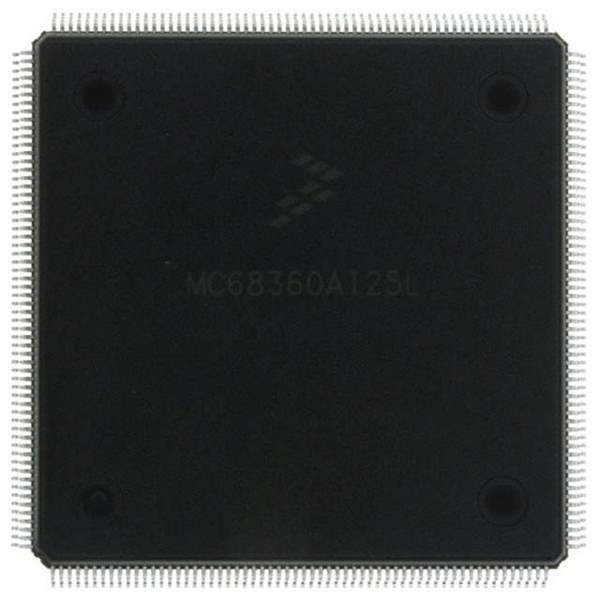

Overview of NXP MC68360EM25VL

The NXP MC68360EM25VL is a highly-integrated microprocessor that incorporates a wealth of features to cater to a broad range of applications. This powerful IC is part of the QUICC family (Quad Integrated Communications Controller) and is designed to provide versatile communication interfaces along with robust processing capabilities.

Key Features

• CPU Core: The product is built around a 32-bit CPU32 core, which is a derivative of the Motorola 68000 microprocessor family. This ensures reliable performance and compatibility with a wide array of software tools and existing codebases.
• Operating Frequency: The MC68360EM25VL operates at a frequency of 25MHz, delivering a balance of power efficiency and processing speed to handle demanding tasks.
• Communication Capabilities: As a QUICC processor, it boasts four serial communication controllers (SCCs) supporting a variety of serial protocols, two serial management controllers (SMCs), and a serial peripheral interface (SPI). These interfaces make it ideal for networking and telecommunication applications.
• Integrated DMA: The device includes a sophisticated DMA (Direct Memory Access) system that facilitates efficient data transfers without burdening the CPU, thus enhancing system throughput.
• Memory Support: It offers support for a range of memory types, including DRAM, SRAM, and ROM, which allows for flexible system design and memory expansion.
• Package: The MC68360EM25VL is available in a 357-pin BGA (Ball Grid Array) package, ensuring a compact footprint for space-constrained applications.

Applications

The versatility of the NXP MC68360EM25VL makes it suitable for a diverse set of applications, particularly in the fields of:

• Networking equipment such as routers, switches, and gateways
• Wireless communication systems including base stations and controllers
• Industrial control systems
• Data acquisition and telemetry systems

With its robust set of features and communication interfaces, the NXP MC68360EM25VL remains a popular choice for designers looking to create sophisticated, high-performance embedded systems.
