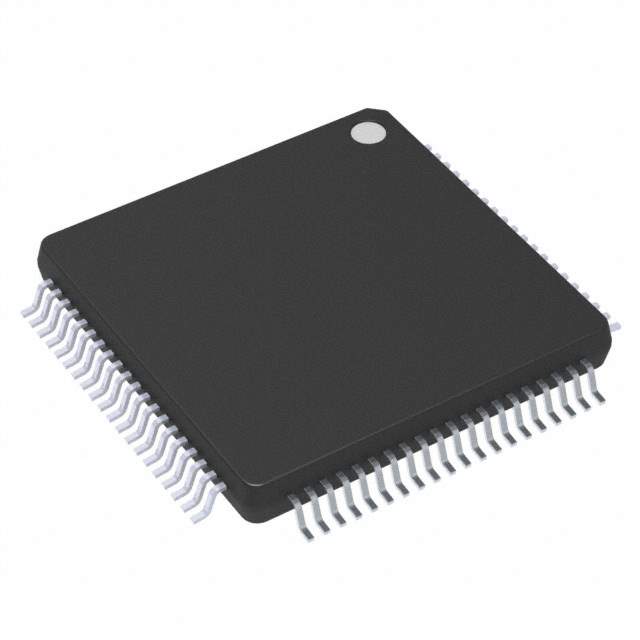

NXP MC56F83686VLK Digital Signal Controller

The NXP MC56F83686VLK is a high-performance digital signal controller (DSC) that combines the processing power of a digital signal processor (DSP) with the functionality of a microcontroller (MCU). This hybrid design makes it an ideal choice for advanced motor control, industrial control, and power management applications where both high-speed mathematical processing and sophisticated control are required.

Key Features:

• Core: The MC56F83686VLK features a 32-bit 56800E core that operates at a frequency of up to 100 MHz, providing a perfect balance between processing power and energy efficiency.
• Memory: It is equipped with 512 KB of embedded Flash memory and 36 KB of RAM, ensuring ample space for complex algorithms and control programs.
• Peripherals: A rich set of peripherals is integrated, including multiple A/D converters, PWM generators, timers, and communication interfaces such as CAN, SPI, I2C, and UART, which support a wide range of connectivity options.
• Motor Control: The device is optimized for motor control applications with its high-resolution PWMs and advanced timers that facilitate precise control over motor functions.
• Flexibility: Its flexible set of peripherals and abundant I/O options make it highly adaptable to various industrial applications, allowing designers to tailor the DSC to their specific needs.
• Development Support: NXP offers a comprehensive suite of development tools, including software libraries, development boards, and debugging tools, to accelerate the design process and reduce time-to-market.

Applications:

The MC56F83686VLK is designed to address the needs of complex and demanding applications such as:

• Advanced Motor Control (e.g., AC Induction Motors, Brushless DC Motors, Permanent Magnet Synchronous Motors)
• Power Conversion (e.g., Inverters, Converters)
• Industrial Automation and Robotics
• Smart Sensors and Instrumentation
• Power Supplies

In summary, the NXP MC56F83686VLK is a powerful and versatile DSC that offers an exceptional blend of DSP and MCU capabilities. Its robust architecture, coupled with its comprehensive feature set, makes it a top choice for engineers looking to develop sophisticated control systems with stringent performance requirements.
