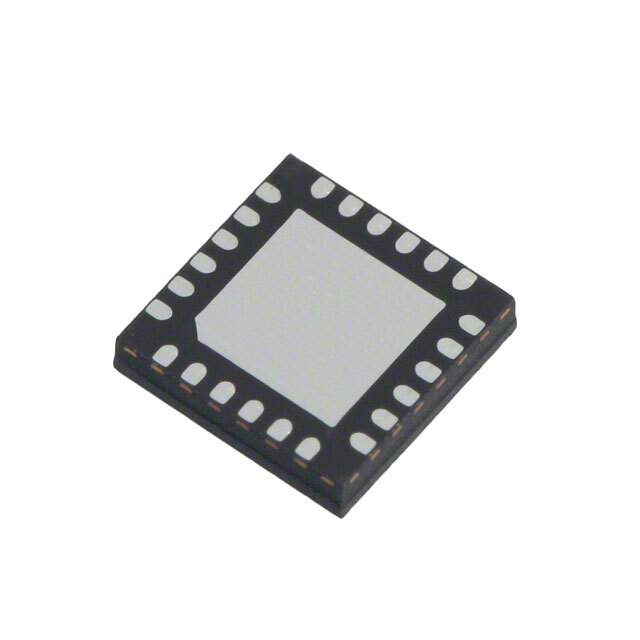

The MC35XS3400CPNA is a high-performance power switch IC designed and manufactured by NXP Semiconductors. This advanced system-on-chip is part of NXP's extensive portfolio of automotive-grade products, tailored to meet the stringent requirements of the modern automotive industry. It is a versatile, quad high-side switch with a rich set of features that make it ideal for driving a wide range of loads in automotive applications.

Key Features

• Quad High-Side Switch: The device includes four high-side switches, providing efficient control of power to various loads.
• High Current Capability: Each switch is capable of handling high continuous current, making the MC35XS3400CPNA suitable for driving high-power loads.
• Advanced Protection: It offers multiple protection features, including over-current, over-temperature, and short-circuit protection, ensuring reliable operation under adverse conditions.
• Diagnostic Functions: Built-in diagnostic capabilities facilitate system monitoring and fault detection, simplifying maintenance and troubleshooting.

Applications

The MC35XS3400CPNA is designed for a variety of applications within the automotive sector. Its robustness and high reliability make it an excellent choice for:

• Automotive lighting systems
• Engine control units
• Body control modules
• Other automotive power distribution systems

Quality and Reliability

As an automotive-grade product, the MC35XS3400CPNA meets the highest quality standards, including AEC-Q100 qualification. NXP's commitment to quality ensures that this power switch operates reliably over a wide temperature range and in the harsh environments typical of automotive applications.

Technical Specifications

For detailed technical specifications and application support, refer to the official datasheet and design resources provided by NXP Semiconductors.
