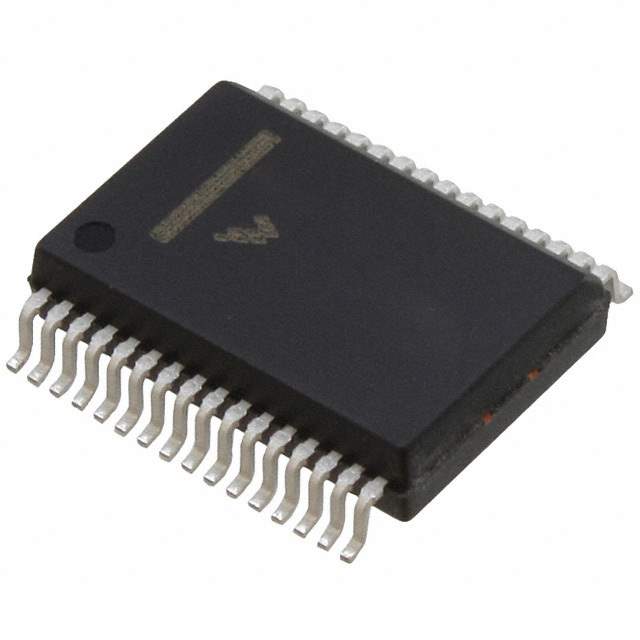

The NXP MC33880DWB is a versatile, high-performance octal serial switch with serial peripheral interface (SPI) control. It is a robust component designed to operate as an output driver for automotive and industrial applications. With its ability to interface directly with a microcontroller, the MC33880DWB offers a reliable solution for controlling various loads with diagnostic feedback.

Key Features

• Eight Output Channels: This device includes eight independent output channels, each capable of driving a variety of loads, including incandescent lamps, solenoids, and DC motors.
• Serial Peripheral Interface (SPI): The SPI bus allows for easy communication with microcontrollers, enabling the control of multiple devices with minimal wiring.
• Output Current Monitoring: Each channel has on-chip open load detection, which is active in both the ON and OFF states, as well as short-circuit detection. This feature ensures safe operation by monitoring the output performance.
• Thermal Shutdown Protection: The device includes over-temperature protection, which guards against the risk of overheating, enhancing the reliability and longevity of the switch.
• High Voltage Capability: The MC33880DWB is designed to handle significant voltage levels, making it suitable for automotive environments where voltage spikes are common.

Applications

The MC33880DWB is primarily used in automotive applications, such as body control modules, engine control units, and power distribution boxes. It is also suitable for industrial applications that require the direct control of actuators, relays, and other high-current loads.

Technical Specifications

• Supply Voltage: 5.5V to 40V
• Output Current: Up to 1.0A per channel
• Operating Temperature Range: -40°C to 125°C
• Package: SOIC-28 Wide Body

Overall, the NXP MC33880DWB offers a compact, efficient, and reliable solution for driving a wide range of outputs, with the added benefits of diagnostic capabilities and protection features that ensure safe and continuous operation under harsh conditions.
