The MC07XS3200EKR2 is a sophisticated power switch integrated circuit (IC) designed and manufactured by NXP Semiconductors, a leader in automotive and secure connectivity solutions. This high-performance product is tailored to meet the stringent requirements of automotive and industrial applications, providing reliable and efficient control of power to various loads.

Key Features

• High Current Handling: The device is capable of handling high continuous current up to 32A, making it suitable for driving heavy loads.
• Multiple Protection Features: It includes over-current, over-temperature, and short-circuit protection, enhancing the safety and reliability of the application it is used in.
• Low Standby Current: The MC07XS3200EKR2 has been designed with energy efficiency in mind, featuring a low standby current which helps in reducing power consumption when the IC is in idle mode.
• Control Flexibility: It allows for both direct and remote control, providing flexibility in system design and application.
• Diagnostic Functions: Equipped with diagnostic capabilities, it enables the detection of faults and system errors, which is critical for maintenance and troubleshooting.
• Durable Design: The IC is designed to withstand harsh environments, making it ideal for automotive applications where temperature and voltage fluctuations are common.

Applications

The MC07XS3200EKR2 is particularly well-suited for a variety of applications within the automotive sector, including but not limited to:

• Automotive engine control units
• Power distribution modules
• Body control modules
• Anti-lock braking systems

Its robustness and reliability also make it a solid choice for industrial applications where high current and protection features are essential.

Product Specifications

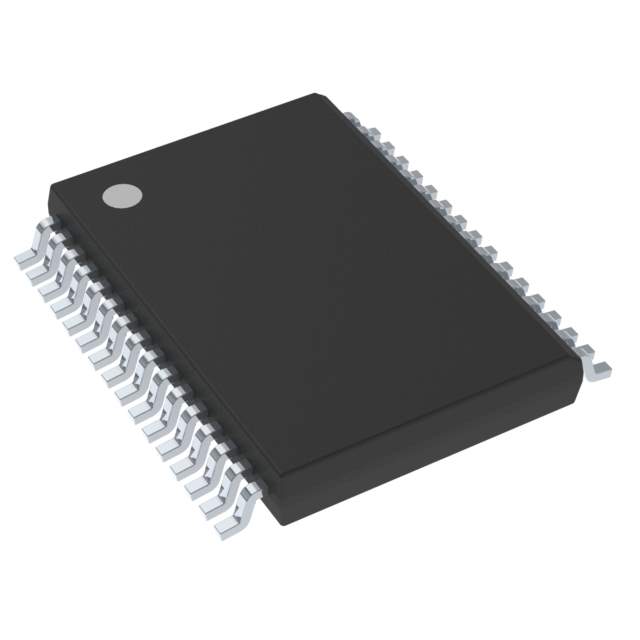

With a wide operating voltage range and the ability to withstand significant temperature extremes, the MC07XS3200EKR2 is designed to operate reliably in the challenging conditions often encountered in automotive environments. The product comes in a compact package, allowing for easy integration into existing systems without the need for extensive redesigns.

For those designing automotive or industrial systems requiring high current handling with advanced protection features, the MC07XS3200EKR2 from NXP provides a proven solution that can significantly enhance system performance and reliability.
