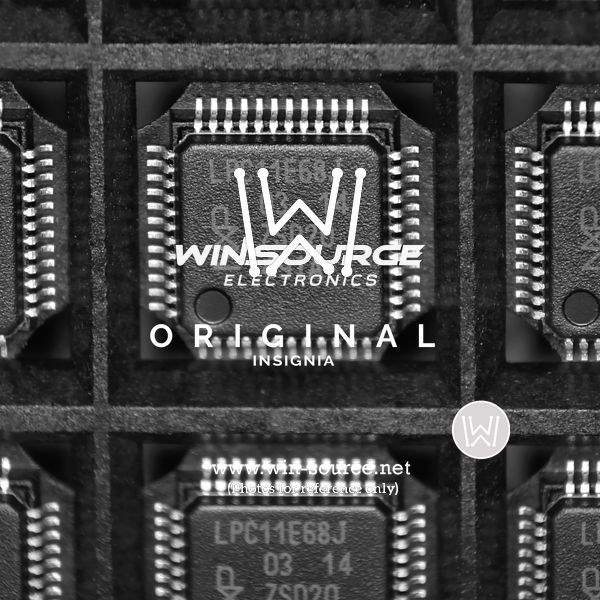

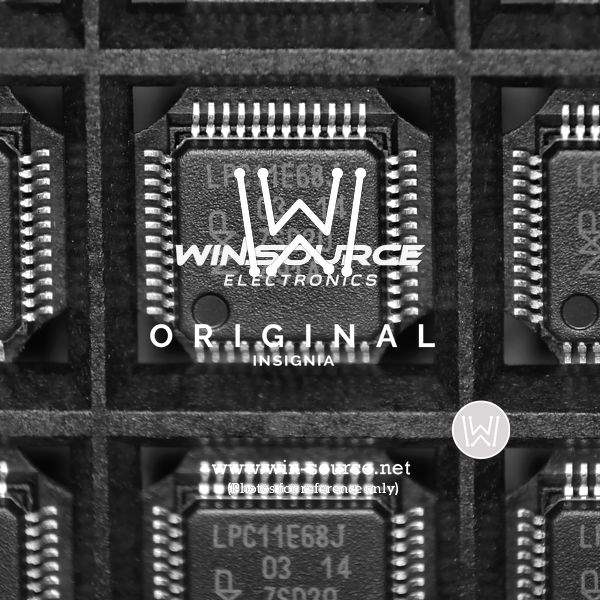

The NXP LPC11E68JBD48 is a powerful and versatile microcontroller that is part of the LPC1100XL series, known for its exceptional efficiency and performance. Designed to cater to a wide range of applications, this microcontroller is an ideal choice for embedded systems requiring low power consumption, advanced communication features, and high levels of system integration.

Key Features

• Core: ARM Cortex-M0+ processor, which operates at frequencies of up to 50 MHz, offering a balanced combination of energy efficiency and processing power.
• Memory: Equipped with 256 KB of on-chip flash memory and 36 KB of SRAM, providing ample space for complex applications and data storage.
• I/O Pins: The microcontroller features 48 GPIO pins, allowing for flexible connection options and a wide range of peripheral integrations.
• Serial Communication: Includes a rich set of serial peripherals, such as SPI, I2C, USART, and CAN, facilitating easy communication with other devices and systems.
• Timers: Comes with multiple 32-bit and 16-bit timers, as well as a state-configurable timer for complex timing requirements.
• Analog: Features an 8-channel, 12-bit ADC (Analog-to-Digital Converter), which provides precise analog signal measurement capabilities.

Advanced Integration

The LPC11E68JBD48 microcontroller integrates various system functions that help reduce the overall system cost and board space. These include an on-chip oscillator, brown-out detect circuit, and a watchdog timer, ensuring reliable operation under varying conditions. Additionally, the microcontroller supports in-system programming and in-application programming, making it easy to update firmware after deployment.

Applications

With its robust feature set, the LPC11E68JBD48 is suitable for a diverse range of applications, including industrial control systems, consumer electronics, automotive systems, and Internet of Things (IoT) devices. Its low power consumption makes it particularly well-suited for battery-powered applications where long operational life is critical.
