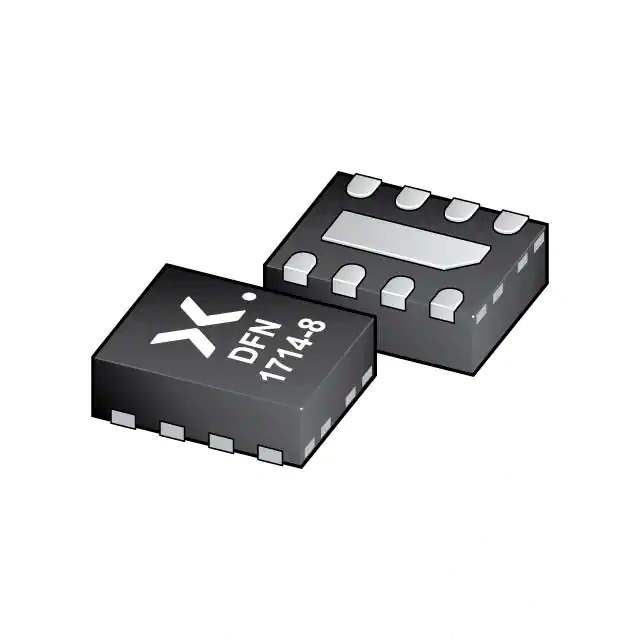

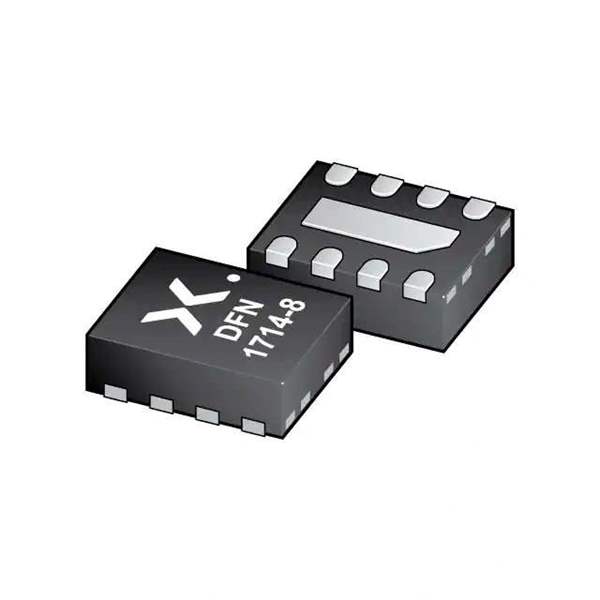

Product Overview: NXP IP4251CZ8-4-TTL132

The NXP IP4251CZ8-4-TTL132 is a state-of-the-art Integrated Circuit (IC) specifically designed to provide robust protection for sensitive electronic components. This compact and efficient solution is tailored for applications that require protection against Electrostatic Discharge (ESD), Electrical Fast Transients (EFT), and other voltage surge phenomena.

Key Features

• ESD Protection: The device offers exceptional ESD protection that exceeds IEC 61000-4-2 level 4 standards, ensuring that your electronic devices are safeguarded against electrostatic discharges.
• Low Capacitance: With its low input capacitance, the IP4251CZ8-4-TTL132 is ideal for high-speed data lines, as it minimizes signal attenuation, thus preserving signal integrity.
• Integrated 4 Channels: This IC integrates four protection channels in a single package, providing a compact and efficient solution for multi-line protection in space-constrained applications.
• Low Clamping Voltage: It features a low clamping voltage, which ensures that the device being protected is exposed to a minimal stress level during transient conditions.

Applications

The IP4251CZ8-4-TTL132 is versatile and can be used in a variety of applications, including but not limited to:

• USB 2.0 Power and Data Line Protection
• Mobile Phones and Portable Devices
• Computer Peripherals
• Audio/Video Inputs
• Other High-Speed Data Interfaces

Package and Quality

Housed in a small 8-lead TSSOP package, the IP4251CZ8-4-TTL132 is designed to occupy minimal board space while providing maximum protection. The package is lead-free and RoHS compliant, aligning with environmental standards and regulations. Additionally, NXP's commitment to quality ensures that this product meets stringent industry requirements for reliability and performance.
