Products specifications

Categories Integrated Circuits
Manufacturer NXP
Packaging Bulk
Status Obsolete(EOL)
Applications CATV
Number of Circuits 1
Operating Supply Current 450mA
Mounting Chassis Mount
Case / Package SOT115J
Win Source Part Number 93340-CGD942C
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CGD942C CAD Model

Description

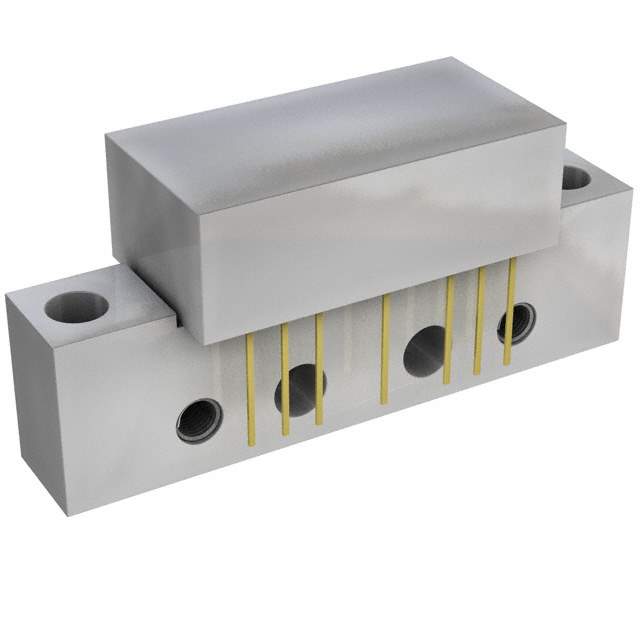

Introducing the NXP CGD942C - A High-Performance RF Power Transistor

The NXP CGD942C is a state-of-the-art RF power LDMOS transistor designed to meet the demanding requirements of high-power applications. This advanced product is a perfect fit for a wide range of uses, including broadcast transmitters, industrial, scientific, and medical (ISM) applications, as well as RF energy and large-scale RF heating systems.

With its exceptional performance and reliability, the CGD942C offers an outstanding output power level, making it an ideal choice for systems that require high efficiency and linearity. The device operates within the 915 MHz to 960 MHz frequency range, providing a broad spectrum of use cases in the UHF band. Moreover, its high gain and efficiency ensure that it delivers optimal performance in even the most challenging environments.

The CGD942C is built using NXP's proven LDMOS technology, which is renowned for its high ruggedness and thermal stability. This technology allows the transistor to withstand high mismatch stresses, making it an incredibly robust component for systems where reliability is critical. The device is also characterized by its excellent thermal behavior, ensuring stable performance over a wide range of operating conditions.

Featuring an integrated ESD protection mechanism, the CGD942C is safeguarded against unexpected electrostatic discharges, thereby enhancing its durability and longevity. Its compact design allows for easy integration into existing systems without the need for significant modifications, simplifying the design and implementation process for engineers.

Key specifications of the NXP CGD942C include its high output power of up to 350 W CW, high gain of 18 dB, and high efficiency of 70%. These features, combined with its ruggedness and ease of use, make it an excellent choice for designers looking to enhance the performance of their high-power RF applications.

In summary, the NXP CGD942C RF power LDMOS transistor is a powerful, efficient, and reliable component that delivers top-tier performance for a variety of high-power RF applications. Its robust design and advanced technology make it a standout product in its class.
