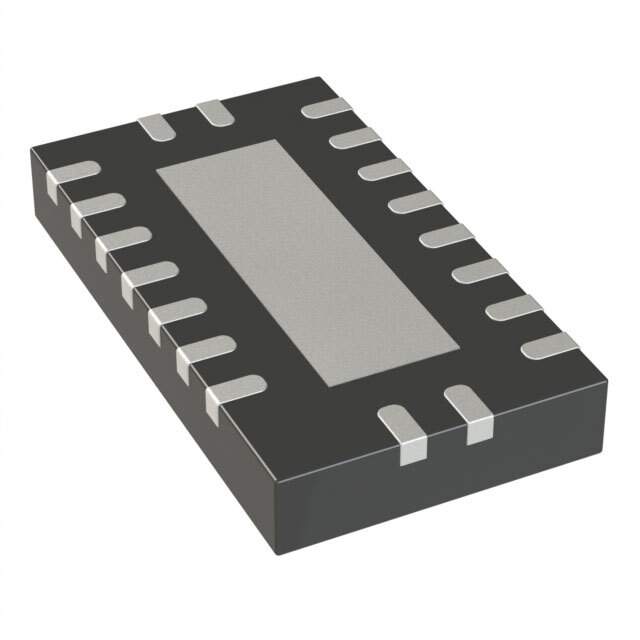

The NXP CBTL02042A is a high-performance, bidirectional multiplexer/demultiplexer switch IC designed for switching high-speed signals with minimal signal degradation. This silicon chip is an essential component for applications that require the routing of high-speed differential signals, such as PCI Express 2.0, SATA, USB 3.0, and DisplayPort, as well as other advanced serial communication systems.

Constructed with cutting-edge technology, the CBTL02042A operates at a wide range of data rates, supporting bandwidths that are critical for high-speed data transfer. It offers four differential channels, which can be configured as two differential 2:1 multiplexer/demultiplexers. The device's design prioritizes signal integrity, ensuring that high-speed signals are transmitted with minimal loss and crosstalk, which is essential for maintaining the integrity of data in complex electronic systems.

The CBTL02042A features an on-chip electrostatic discharge (ESD) protection circuitry, which provides robust protection for sensitive components, thereby enhancing the durability and reliability of the end product. Moreover, the IC is designed for low-power operation, helping to reduce the overall power consumption of the systems in which it is implemented.

Integration of the CBTL02042A into system designs is facilitated by its compatibility with a variety of signal standards and its support for hot-plug detection. The device is housed in a compact package, making it suitable for space-constrained applications. NXP's commitment to quality ensures that the CBTL02042A meets the stringent requirements of high-speed signal applications, providing designers with a flexible and efficient solution for their multiplexing and demultiplexing needs.
