Products specifications

Category Discrete Semiconductor Products
Family Diodes - Rectifiers - Arrays
Manufacturer NXP
Packaging Tube
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) (per Diode) 20A
Voltage - Forward (Vf) (Max) @ If 1.48V @ 20A
Speed Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 60ns
Current - Reverse Leakage @ Vr 50μA @ 600V
Mounting Style Through Hole
Package TO-220-3
Manufacturer Device Package TO-220AB
Win Source Part Number 201721-BYV34-600
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BYV34-600 CAD Model

Description

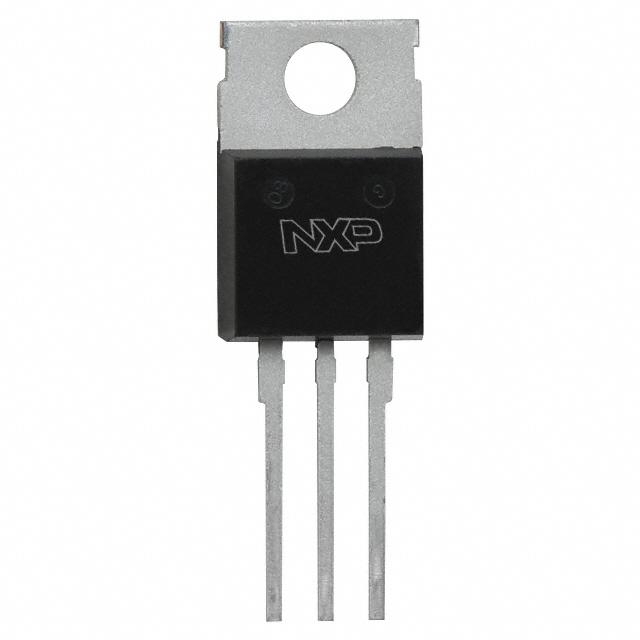

The BYV34-600, manufactured by NXP Semiconductors, is a robust and efficient rectifier diode designed to cater to a wide array of electronic applications. This product is highly regarded for its ability to handle high voltage and current, making it an ideal choice for power supply and conversion systems.

Key Features

  • Voltage Rating: The BYV34-600 is capable of withstanding reverse voltages up to 600 volts, providing a substantial margin for overvoltage transients and spikes commonly found in industrial environments.
  • Current Capacity: It has a forward current rating of up to 30 amperes, ensuring that it can handle high power applications with ease.
  • Dual Diode Configuration: This component features a dual diode common cathode configuration, which allows for the rectification of AC input in a compact package, saving space and simplifying design.
  • High Surge Current Capability: The BYV34-600 can withstand surge currents, making it reliable for applications that experience short bursts of high current loads.
  • Fast Switching Speed: With a fast recovery time, this diode minimizes energy loss during switching, thus improving the efficiency of the overall system.
  • Package: Enclosed in a SOT78 (TO220AB) package, the BYV34-600 ensures a robust and reliable mechanical and thermal performance.

Applications

The BYV34-600 is versatile and can be used in a variety of applications, including:

  • Switch-mode power supplies (SMPS)
  • Power converters and inverters
  • Freewheeling diodes in motor control circuits
  • Battery chargers
  • Energy storage systems

Quality and Reliability

NXP Semiconductors is known for its commitment to quality, and the BYV34-600 is no exception. It is manufactured to meet high standards, ensuring reliable performance even in harsh conditions. The device is RoHS compliant, ensuring that it meets current environmental standards regarding hazardous substances.

Conclusion

In conclusion, the BYV34-600 diode from NXP is a powerful and reliable component suitable for high voltage and current applications. Its dual diode configuration, fast switching capabilities, and robust package make it an excellent choice for designers looking to optimize their power systems for efficiency and reliability.
