Product Overview: 74LVT125PW-T from NXP

The 74LVT125PW-T is a high-performance, low-voltage, quad buffer/line driver with 3-state outputs, designed by NXP Semiconductors. This integrated circuit is part of the LVT family, which is known for its low-voltage operation and high-speed interfacing. It is particularly suitable for driving bus lines or buffer memory address registers in a wide range of applications.

Each of the four buffers in the 74LVT125PW-T has a 3-state output that can be controlled individually, providing high flexibility in bidirectional bus driving or isolation applications. The 3-state feature allows the outputs to be set to a high-impedance state, effectively disconnecting the output from the bus. This is essential for multiplexing signals or sharing bus lines without causing contention or data corruption.

Key Features

• Supply Voltage Range: The 74LVT125PW-T operates at a supply voltage range of 2.7V to 3.6V, making it compatible with low-voltage systems and ensuring reduced power consumption.
• High-Speed Performance: It offers high-speed performance with a typical propagation delay (t_pd) of only 3.0 ns, ensuring fast signal processing for critical applications.
• Low Power Dissipation: Its low power dissipation is ideal for power-sensitive designs, with a typical I_CC of only 40 µA in the high-impedance state.
• 5V Tolerant Inputs: Inputs are 5V tolerant, allowing interface with 5V logic levels without damage to the device.
• Output Drive Capability: The device can drive 50 Ω transmission lines at 3.3V, providing robust signal integrity.
• ESD Protection: Enhanced Electrostatic Discharge (ESD) protection is provided on all pins to minimize the risk of damage from static electricity.

Applications

The 74LVT125PW-T is well-suited for a variety of applications, including:

• Memory address driving
• Bus isolation and multiplexing
• Driving heavily loaded buses in industrial and telecommunications systems
• Interfacing between different voltage domains

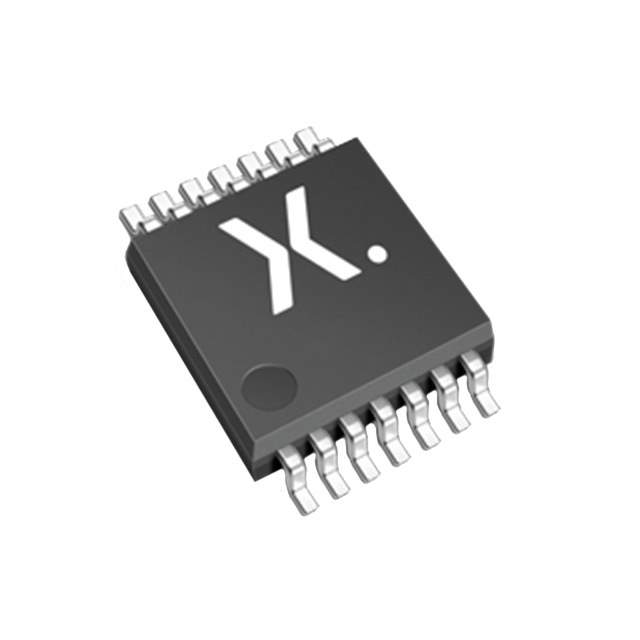

Its small footprint and TSSOP (Thin Shrink Small Outline Package) configuration make it an excellent choice for space-constrained applications. The 74LVT125PW-T is a versatile component that delivers performance and reliability for systems that require high-speed data transfer and low-voltage operation.

With its combination of features, the 74LVT125PW-T from NXP is a reliable choice for designers looking to optimize their high-speed digital interfaces while maintaining low power consumption and high noise immunity.
