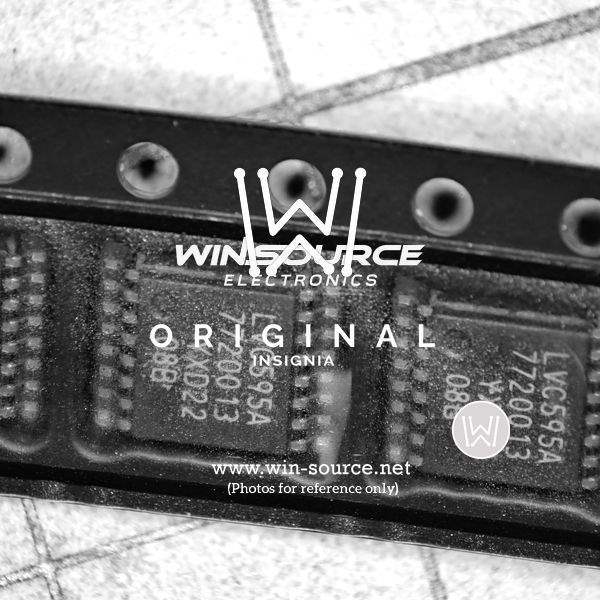

Product Overview: 74LVC595ABQ by NXP Semiconductors

The 74LVC595ABQ is a high-performance, 8-bit serial-in/serial or parallel-out shift register with a storage register and 3-state outputs from NXP Semiconductors. This integrated circuit (IC) is part of the LVC (Low-Voltage CMOS) family, which is renowned for its low power consumption and high-speed operation. It operates on a 3.3V power supply, making it suitable for interfacing with 3.3V logic devices.

Designed with the state-of-the-art technology, the 74LVC595ABQ is compatible with 5V I/O tolerant systems, providing the flexibility needed in mixed-voltage environments. This feature allows seamless integration with both legacy and newer systems, ensuring a broad range of application possibilities.

The device features an 8-bit serial input (DS) and an 8-bit serial output (Q7') that can be used for cascading multiple devices. This makes it an ideal choice for expanding the output ports of microcontrollers while minimizing the number of I/O pins used. The shift register has a positive-edge triggered clock (SHCP), a reset input (MR), and an output-enable input (OE) which controls the 3-state outputs.

One of the key attributes of this product is its high-speed performance, which can go up to 100 MHz (typical) at 5V. This makes the 74LVC595ABQ suitable for high-speed data processing applications. The IC also possesses the capability to drive heavily loaded outputs with 24 mA at the 3.3V supply voltage, ensuring robust signal integrity in various applications.

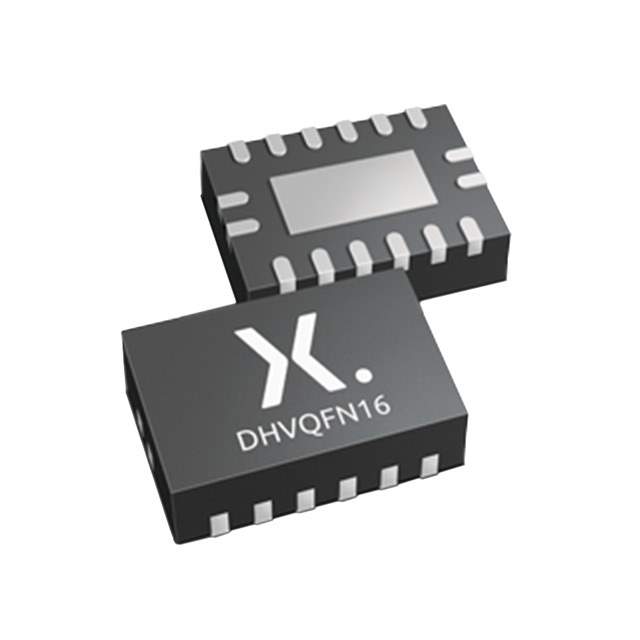

The device comes in a DHVQFN16 package, which is a leadless, space-saving package design. This compact footprint allows for efficient use of PCB space, making it an excellent choice for space-constrained applications.

The 74LVC595ABQ is widely used in a variety of applications, including digital signal processing, data acquisition systems, LED displays, and any system requiring serial-to-parallel data conversion. Its low power dissipation and compatibility with both 3.3V and 5V systems make it a versatile and reliable component for designers and engineers looking to optimize their digital logic designs.

In summary, the NXP 74LVC595ABQ shift register is a high-quality and versatile component that provides a reliable solution for expanding output capabilities while maintaining high-speed performance and low power consumption.
