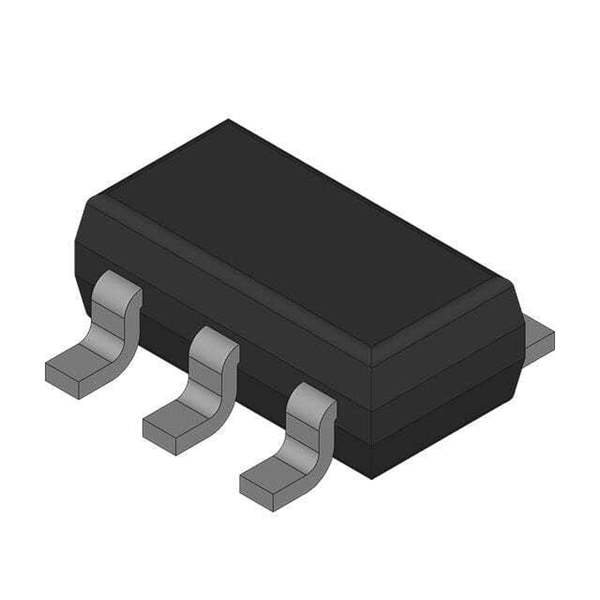

Product Overview: 74LVC1G125GV-Q100125 by NXP

The 74LVC1G125GV-Q100125 is a high-performance, single buffer/line driver with a 3-state output from NXP Semiconductors. Designed to meet the rigorous standards of automotive applications, this device is part of the LVC family, which operates at a low voltage and with high-speed capabilities. The product is characterized for operation from -40°C to +125°C, making it suitable for harsh environments.

Key Features

• Low Voltage Operation: The device operates at a 1.2V to 5.5V VCC supply voltage, which allows for use in mixed-voltage systems and ensures compatibility with lower voltage processors and logic systems.
• High-Speed Performance: It offers high-speed performance with a typical propagation delay (t_pd) of only 3.7ns at a 3.3V supply, ensuring quick signal processing for time-sensitive applications.
• 5V Tolerant Inputs: Inputs can tolerate a voltage up to 5.5V, even when the device is operating at a lower voltage, providing interface flexibility and protection against higher voltage levels.
• Low Power Consumption: The device has a low power consumption, making it ideal for power-sensitive applications.
• Bus Hold Function: Equipped with a bus hold function, the device maintains the last input state whenever the input goes to a high impedance, preventing floating inputs and reducing the need for external pull-up or pull-down resistors.
• Automotive-Qualified: The 74LVC1G125GV-Q100125 is qualified for automotive applications, ensuring reliability and performance under extreme conditions typical in automotive environments.
• ESD Protection: It includes robust ESD protection, which helps to prevent damage from electrostatic discharges during handling and operation.

Applications

The device is versatile and can be used in a wide range of applications, especially where buffer functions are needed to drive lines or for signal integrity purposes. Typical applications include:

• Automotive control systems
• Signal buffering for bus lines
• Logic level shifting
• Memory and data management in embedded systems

The 74LVC1G125GV-Q100125 from NXP is an essential component for designers looking for a reliable and high-performing buffer/line driver that can withstand the demanding conditions of automotive and industrial applications.
