NXP 74HCT125PW Quad Buffer/Line Driver with 3-state Outputs

The NXP 74HCT125PW is a high-speed Si-gate CMOS device that is pin compatible with low-power Schottky TTL (LSTTL). It is designed to improve both the performance and density of three-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters.

This integrated circuit features four independent buffer/line drivers with 3-state outputs, each capable of driving high-capacity loads while maintaining low power consumption. The 3-state outputs are controlled by the output enable inputs (nOE), which when high, disable the output to assume a high-impedance state. This high-impedance state is essential for shared-bus applications, where multiple devices need to take turns driving the bus lines without interference.

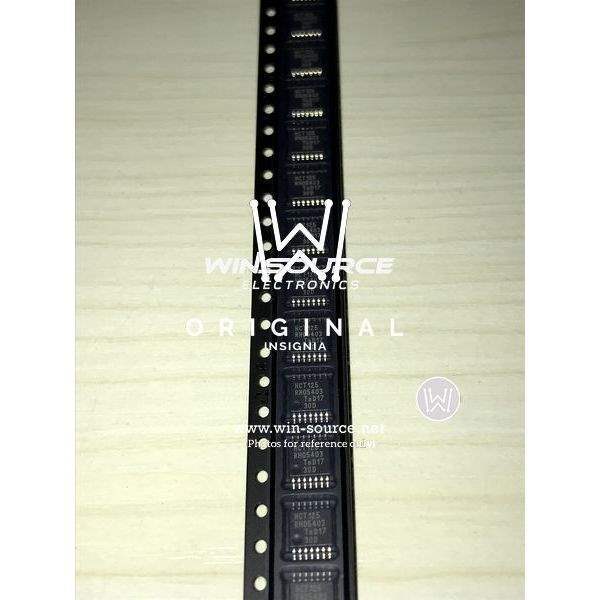

The 74HCT125PW is housed in a TSSOP14 (thin shrink small outline package) which is optimized for reduced space on PCBs (printed circuit boards). The device supports a wide operating voltage range from 4.5V to 5.5V, making it compatible with TTL logic levels while providing the benefits of CMOS technology such as rail-to-rail operating capability and improved switching characteristics.

Key Features:

• Quad buffer/line drivers with 3-state outputs
• 5V tolerant inputs for interfacing with 5V logic
• Complies with JEDEC standard no. 7A
• Input levels are compatible with TTL output levels
• ESD protection:
  • HBM JESD22-A114E exceeds 2000V
  • MM JESD22-A115-A exceeds 200V
• Multiple package options including TSSOP14
• Wide operating temperature range: -40°C to +125°C

With its combination of high-speed performance, low power consumption, and robust ESD protection, the NXP 74HCT125PW is ideal for a variety of applications that require reliable buffering and driving capabilities. Its ability to interface with both CMOS and LSTTL makes it a versatile choice for systems that require a mix of technology standards.

Whether you're designing digital circuits for data processing, telecommunications, or consumer electronics, the NXP 74HCT125PW provides the functionality and reliability needed for efficient and high-performance designs.
