The NXP 74ALVCHT16835DGV is a high-performance, non-inverting 18-bit universal bus transceiver with 3-state outputs. This integrated circuit is part of the Advanced Low-Voltage CMOS High-Speed Transceiver (ALVCHT) family, designed to address the needs of high-speed data communication in modern computing and telecommunications systems.

Key Features

• High-Speed Performance: The device operates at a voltage range of 2.3V to 3.6V, making it suitable for interfacing with low-voltage logic while maintaining high-speed data transfer capabilities.
• Low Power Consumption: With its advanced CMOS technology, the 74ALVCHT16835DGV offers minimal power dissipation, contributing to energy-efficient designs.
• Bus-Hold Data Inputs: The bus-hold feature on data inputs eliminates the need for external pull-up or pull-down resistors, simplifying board layout and reducing component count.
• Wide Bus Interface: The device features an 18-bit wide bus interface, which is capable of handling a substantial amount of data, suitable for high data bandwidth applications.
• 3-State Outputs: The inclusion of 3-state outputs allows for connection to a bus-oriented system, providing high-impedance states when needed to avoid bus contention.

Applications

The 74ALVCHT16835DGV is ideal for a variety of applications where high-speed, low-voltage operation and effective bus management are essential. This includes use in:

• Memory interfacing
• Data communication systems
• Networking equipment
• Servers and high-performance computing
• Signal routing

Package and Quality

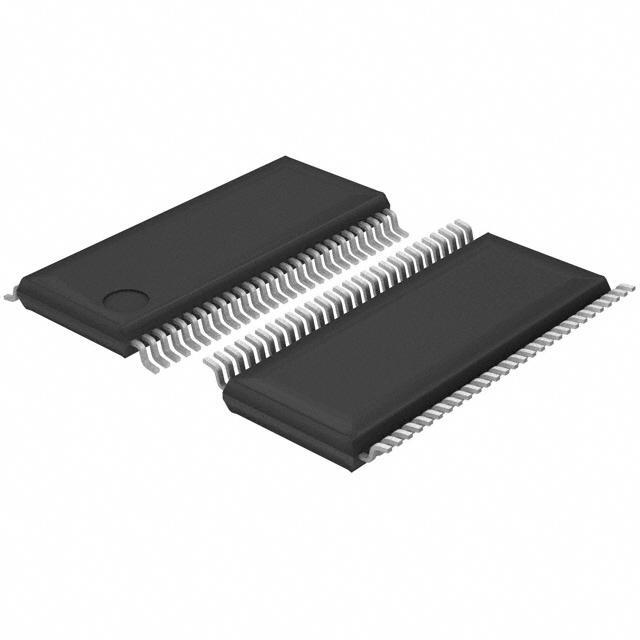

The device is housed in a 56-pin TSSOP (thin shrink small outline package) that offers a compact footprint with good thermal performance. The 74ALVCHT16835DGV is fabricated using NXP's proven technology, ensuring high reliability and performance consistency. It is compliant with JEDEC standards and is suitable for operation in commercial temperature ranges.

For detailed specifications and application support, designers and engineers are encouraged to refer to the official NXP datasheets and product guides.
